T-Motor VL1180 VTOL UAV Motor - 88kg Max.Thrust / Arm

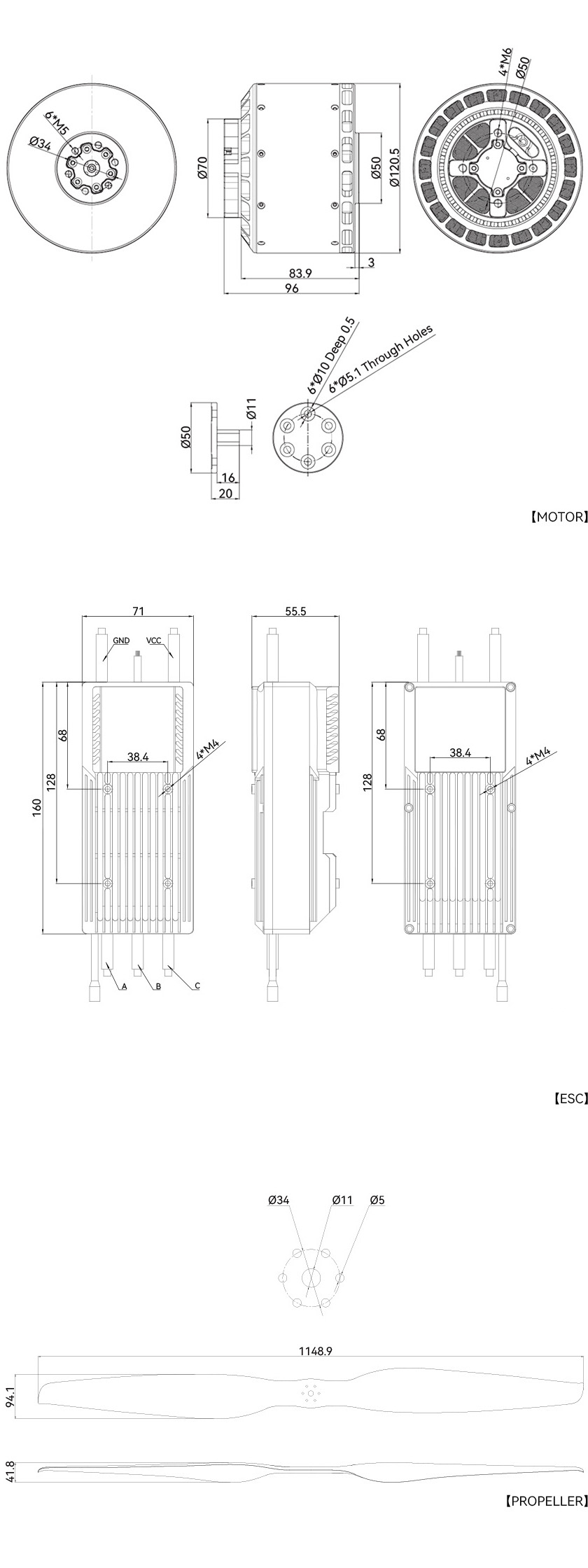

Technical Drawing

Specification

Model No.	VL1180 KV60	Magnet Level	180℃
Motor Size	Φ120.5*96mm	Lead Cable	Enameled Wire 150mm
Stator	150°C High Temperature- Resisting Coatings	Copper Wire	200℃
Configuration	36N40P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 17	Rotor Dynamic Balance Standard	≤20mg
Bearing	Imported 6903	IP	IPX5
Centrifugal Cooling Design	YES	Package Size	242*152*132mm

Model No.	VL1180	KV (RPM/V)	60
Rated Voltage (LiPo)	24S	Idle Current (15V)	4.2A
Internal Resistance (25℃)	14mΩ	Peak Current	254A
Continuous Power (180s)	4500W	Ambient Temperature	-30～55℃
Max Thrust	88kg	Motor Weight (Incl. Cable)	2680g

ESC Specs
Model No.	VL300A 24S	Control	PWM/CAN
Max Voltage	108V	Protocol	CAN
Peak Current (10s)	300A (Open Environment And Temperature≤60℃)	Propeller-Locking	ElectronicPropeller- Locking
Continuous Current	150A (Under Certain Heat Dissipation Conditions)	Encoder Cables	M6-4 Aviation Connector-465±10mm
Standby Consumption	≤15mA	Output Cable	Silicone Wire-Black- 7AWG-290±10mm
Throttle Pos. Range	1100~1940us (Fixed)	Input Cable	Silicone Wire-Red/Black-7AWG-1950±15mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded Cables-Black-OD4.2-5C-2030±15mm- JP-3P*2
Throttle Response Speed	300ms	Weight (Excl. Cable)	825g

Prop Specs
Model No.	VZ45*18 Inch (1143*457.2mm)	Weight (Single Blade)	320g

Test Data

Type		Voltage (V)	Throttle	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Effciency (gf/W)	Operating Temperature (℃)
VL1180 KV60 + VL300A 24S + VZ45*18		88.8	30%	14895	7.81	17.99	1680	1592	9.36	165 (Ambient Temperature: 25)
			35%	20089	10.54	27.47	1980	2434	8.25
			40%	25049	13.18	37.84	2190	3343	7.49
			45%	29994	15.87	49.59	2430	4384	6.84
			50%	35126	18.60	62.60	2586	5529	6.35
			55%	40042	21.29	76.70	2763	6768	5.92
			60%	45031	23.98	91.75	2943	8059	5.59
			65%	50206	26.91	109.22	3066	9584	5.24
			70%	56425	30.39	130.14	3246	11490	4.91
			75%	61929	33.51	151.10	3393	13326	4.65
			80%	67253	36.56	172.96	3516	15238	4.41
			85%	70117	38.26	186.02	3603	16351	4.29
			90%	74845	40.97	208.04	3696	18305	4.09
			95%	78553	43.25	228.28	3791	20096	3.91
			100%	80681	44.47	239.96	3840	21117	3.82
VL1180 KV60 + VL300A 24S + VZ45*18		100	30%	18906	9.97	22.97	1890	2297	8.23	/
			35%	25506	13.49	35.03	2190	3508	7.27
			40%	31653	16.93	48.40	2433	4834	6.55
			45%	37786	20.16	62.92	2683	6292	6.01
			50%	43856	23.53	78.91	2891	7857	5.58
			55%	49872	26.74	96.45	3084	9570	5.21
			60%	56223	30.32	116.54	3264	11625	4.84
			65%	62656	33.92	138.24	3444	13777	4.55
			70%	68731	37.41	160.88	3552	15955	4.31
			75%	74349	40.76	185.16	3702	18368	4.05
			80%	79136	43.54	207.41	3816	20569	3.85
			85%	82357	45.48	222.49	3888	22171	3.71
			90%	86610	47.82	244.10	3979	24286	3.57
			100%	88075	48.77	254.69	4017	25385	3.47
Note: The motor temperature refers to the coil temperature after 10 minutes of operation under a 88.8V voltage and 40kg load. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）
