Skydroid G20 - 2.4G/5.8G Dual Band 30KM Long Distance Remote Controller With GR01 Receiver for Industrial Drone
Overview
The Skydroid G20 is a professional-grade 30KM long-range remote controller designed for industrial and commercial drone applications. It features a 7-inch 1920×1200 full HD high-brightness touchscreen. powered by a Qualcomm 6nm processor and the latest Android 13 OS. offering smooth operation and hardware-level decoding for 4K H.264/H.265 video. With dual-band 2.4GHz/5.8GHz automatic switching. it ensures stable signal transmission in complex environments. The controller is equipped with 8GB RAM. 128GB internal storage. and a 20000mAh battery providing up to 12 hours of runtime. supported by 36W PD Type-C fast charging. Its versatile I/O options—including SIM card slot. USB. Type-C. SBUS. PWM. and serial ports—make it compatible with various payloads such as gimbals. pods. and industrial-grade video equipment.
Key Features
-
30KM Digital Video & Control Transmission: Reliable long-distance operation using Skydroid's advanced image control link.
-
Dual-Band 2.4GHz/5.8GHz with Auto-Switching: Enhances anti-interference and adapts dynamically to flight conditions.
-
7” FHD Industrial Touchscreen: Crisp 1920×1200 resolution and high brightness ensure visibility under sunlight.
-
Android 13 + Qualcomm 6nm Platform: Enables seamless app performance and real-time video decoding.
-
Extended Battery Life: Up to 12 hours with 36W PD fast charging via Type-C for continuous missions.
-
Abundant Interfaces: Includes SIM. USB. serial ports. PWM. SBUS—ideal for drones with cameras. sensors. and gimbals.

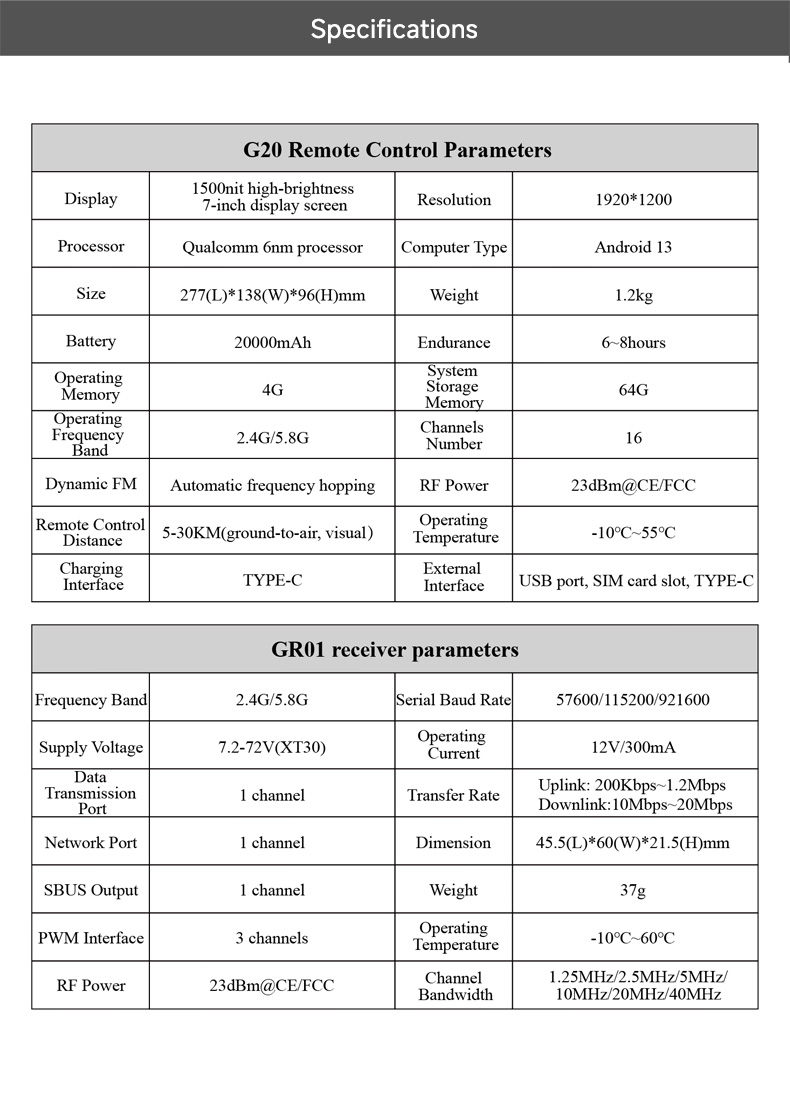

Specifications
G20 Remote Control Parameters
| Parameter | Details |
|---|---|
| Display | 7” industrial FHD touch screen |
| Resolution | 1920 × 1200 |
| Processor | Qualcomm 6nm |
| OS | Android 13 |
| RAM / Storage | 4GB / 64GB |
| Battery Capacity | 20000mAh |
| Endurance | 8–12 hours |
| Charging Interface | TYPE-C. 36W PD |
| Size / Weight | 277×138×96mm / 1.2kg |
| Frequency Band | 2.4GHz / 5.8GHz Dual Band |
| Dynamic Frequency | Automatic Frequency Hopping |
| Transmission Distance | 5–30KM (ground-to-air. visual) |
| RF Power | 23dBm @CE/FCC |
| Operating Temp. | -10°C to 55°C |
| External Interfaces | USB. SIM card. Type-C. serial. SBUS. PWM |
GR01 Receiver Parameters
| Parameter | Details |
|---|---|
| Frequency | 2.4GHz / 5.8GHz |
| Voltage Range | 7.2–72V (XT30) |
| Operating Current | 12V / 300mA |
| Serial Baud Rates | 57600 / 115200 / 921600 |
| Data Transmission | 1 channel. 200Kbps–160Mbps |
| Network / SBUS Ports | 1 channel each |
| PWM Output | 3 channels |
| RF Power | 23dBm @CE/FCC |
| Channel Bandwidth | 1.25MHz to 40MHz (selectable) |
| Dimensions / Weight | 45.5×60×21.5mm / 37g |
| Operating Temp. | -10°C to 60°C |
Package Included:
Skydroid G20:
Skydroid G20 Remote Controller * 1
GR01 Receiver:
GR01 receiver*1
2.4G/5G receiver antenna*2
Receiver feeder*2
Receiver power cable (XT30)*1
PIX Telemetry line*1
Skydroid G20+GR01 Receiver:
G20 remote controller*1
GR01 receiver*1
2.4G/5G receiver antenna*2
Receiver feeder*2
Receiver power cable (XT30)*1
PIX Telemetry line*1
Type-C charger*1
Shoulder strap*1
Applications
The Skydroid G20 remote controller is ideal for UAV missions in mapping. inspection. agriculture. surveillance. construction. and emergency response. Its 30KM image transmission. dual-band reliability. and advanced connectivity make it a versatile and powerful tool for demanding professional drone operations.
Details
| Type |
Skydroid G20, GR01 Receiver, Skydroid G20 + GR01 Receiver |
|---|
