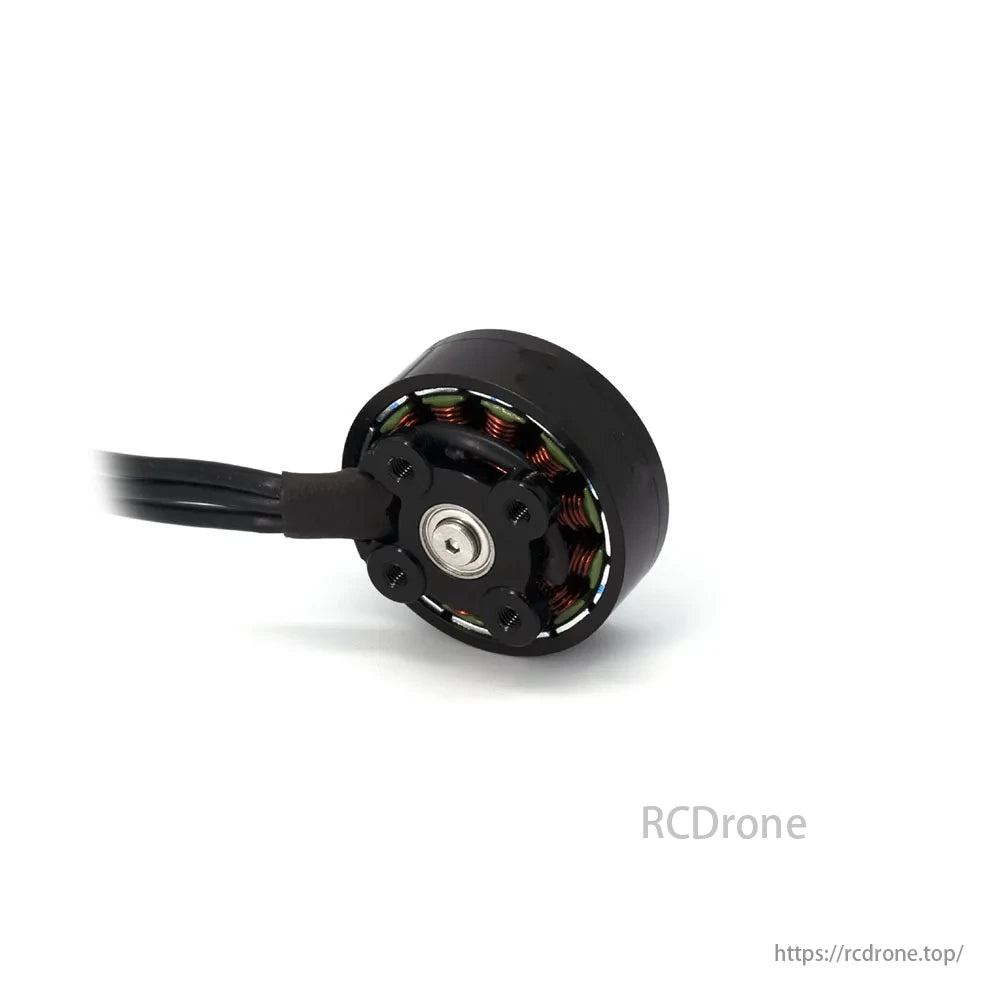

4PCS X2807 1300KV / 1700KV 4S–6S Brushless Motors for 7 Inch Long Range FPV Freestyle Drones
Overview
The X2807 Brushless Motor is purpose-built for 7-inch FPV long-range and freestyle drones. delivering up to 1400W max power on 6S with smooth and consistent output. Available in 1300KV and 1700KV. it's ideal for high-thrust and efficiency-demanding builds like the Mark4 LR7 and other long-range quads.
Featuring a robust 12N14P stator. 4mm bearing shaft. and low resistance copper windings. this motor ensures durability and heat management for high-current flight scenarios.
Key Features
High-performance 1300KV / 1700KV options
Supports 2S–6S LiPo. ideal for 4S/6S long range and freestyle builds
Large stator with 33.5mm diameter and strong 4mm shaft
Max output up to 1400W and peak current 55A @ 6S
Designed for 6 to 7 inch propellers
Efficient 12N14P winding structure for smooth throttle response
Specifications
| Parameter | Value |
|---|---|
| Model | X2807 |
| KV Rating | 1300KV / 1700KV |
| Input Voltage | 2S – 6S LiPo |
| Peak Current (6S) | 55A |
| Max Power (6S) | 1400W |
| Idle Current (10V) | 1A |
| Internal Resistance | 60mΩ |
| Framework | 12N14P |
| Bearing Shaft | 4mm |
| Dimensions | 33.5mm × 17.5mm |
| Lead Wires | 18AWG. 200mm |
| Weight (w/o wires) | 48.6g |
| Recommended Props | 6" – 7" |
What's Included
4 × X2807 Brushless Motor
4 × Sets of Mounting Screws
4 × M5 Prop Nuts
(Note: Exact accessory list may vary depending on batch; propellers not included.)
Application
Ideal for:
7-inch long-range FPV drones
Freestyle builds like Mark4 LR7
Cinematic or endurance setups requiring high torque and smooth throttle
Recommended Setup
-
Battery:
1300KV: 6S 1500–2200mAh
1700KV: 4S 1800–2500mAh
-
Propellers:
HQProp 7x3.5x3. Gemfan 7042. or 6x4 for better throttle response
-
ESC:
45A–60A BLHeli_32 or BLHeli_S. with reliable cooling
4PCS X2807 1300KV brushless motors with screws and nuts. designed for 4S–6S operation. Compact. efficient. and labeled with FC CE RoHS.
