AMAX 1106 Competition Brushless Motor 3300KV-6500KV 1.5mm Shaft for 2S-3S Micro FPV Toothpick Cinewhoop Drone

Overview

The AMAX 1106 Competition Brushless Motor is engineered for high-performance micro FPV drones. offering KV options ranging from 3300KV to 6500KV. Built with 7075 aluminum. Japanese bearings. and high-temp windings. this 1106 motor weighs just 6.8g (without cables) while delivering up to 446g of thrust on 3S with a 5500KV version. It supports 2S–3S LiPo. uses a Φ1.5mm shaft. and features AMAX's Lock-Bell Design for enhanced crash protection. cooling. and maintenance.

Key Features

• KV Options: 3300KV / 3700KV / 4200KV / 4800KV / 5500KV / 6500KV

• Voltage: Supports 2S–3S LiPo

• Shaft Diameter: 1.5mm

• Weight: 6.8g (without cable). 7.8g (with 90mm cable)

• Configuration: 9N12P

• Peak Power: 400W (<10s)

• Max Continuous Power: 280W (>10s)

Structural Innovations

AMAX Lock-Bell Design

• No parting bell. shock-resistant. rainproof

• CNC-machined 7075 aluminum. dynamic balanced

• Integrated bearing protection system

Bell

• Reinforced crash zone with wave structure

• Electroplated scratch-resistant surface

• Enlarged surface area for better cooling

Base

• Extra-thick with deeper thread holes

• AMAX cooling fin design

• Heat-resistant silicon cable integration

Magnets

• Curved magnets with anti-slip ring

• Tight air gap and high heat resistance

Stator & Windings

• Japanese Kawasaki thin laminations

• Sealed windings with 260°C high-temp copper wire

• Better robustness and cooling performance

Bearings

• IP54-rated Japanese bearings

• Hidden top bearing for longer lifetime

Shaft

• Lightweight titanium shaft with screw fixation

• Enhanced durability and easy maintenance

Performance Data (Selected Examples)

Applications

Perfect for:

• 65–95mm CineWhoop builds

• Toothpick FPV drones

• Micro racing quads (1.5"–3.5" props)

Ideal for both freestyle and racing with its compact size. high thrust-to-weight ratio. and reliable structure.

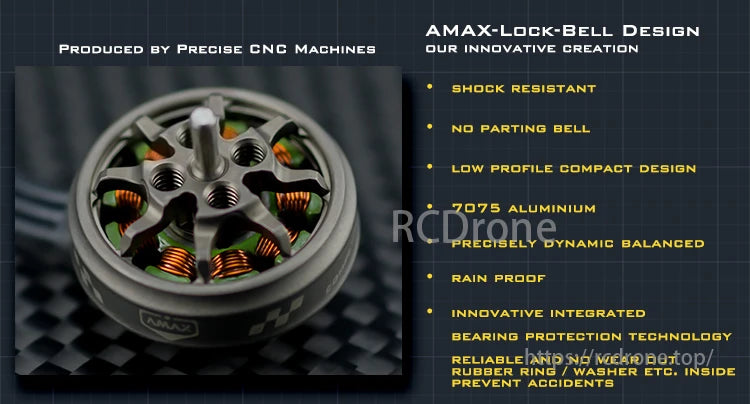

AMAX 1106 motor: shock-resistant. no parting bell. low profile. 7075 aluminum. dynamically balanced. rainproof. integrated bearing protection. reliable. prevents accidents. Produced by Precise CNC Machines.

AMAX 1106 motor has enhanced crash area. more cooling. and scratch-resistant surface.

AMAX 1106 motor includes extra-thick base. longer thread hole. cooling fins. 7075 aluminum. heat-resistant cables. Curved magnets enhance heat resistance. prevent slipping. and ensure a super tight air gap.

AMAX 1106 motor includes Kawasaki stator lamination. sealed windings. 260°C heat resistance. thick copper wires. and improved cooling for efficiency.

AMAX 1106 motor with hidden bearing. IP54 protection. and Japanese bearings.

AMAX 1106 motor shaft: titanium material. light. strong design. easy maintenance with screw fixation.

AMAX 1106 motor specs: 9N12P. 400W peak. 280W continuous power. 90mm cable. 7.8g with cables. 6.8g without.

AMAX 1106 motor performance data for various voltages. propellers. and throttle settings. Includes current. thrust. power. efficiency. and temperature metrics at different RPM/volt values.
