DarwinFPV CineApe35 2006 2030KV / 3400KV Brushless Motor for 3.5 Inch FPV Cinewhoop Long Range Racing Drones
Overview
The DarwinFPV CineApe35 2006 Brushless Motor is a powerful and efficient upgrade for 3.5-inch cinewhoop FPV drones and 4–6 inch long-range quads. Available in 2030KV for 6S setups and 3400KV for 4S builds. this motor is a superior alternative to traditional 2004 motors—delivering higher torque. stronger lift. and stable flight even when carrying full-size GoPro cameras.
Engineered with DJI-level magnetic circuit design. it offers enhanced efficiency. endurance. and battery performance. A custom titanium anti-detachment shaft ensures better impact resistance. making it ideal for freestyle and cinematic FPV applications.
Key Features
-
Two KV Options
2030KV for 6S long-range drones (5–6 inch)
3400KV for 4S cinewhoops and 3–4 inch freestyle quads
-
Perfect for 3.5” Whoop Drones
Specifically optimized for CineApe35 and similar ducted designs
Compared to 2004 motors. it provides greater thrust and payload capacity
-
DJI-Grade Magnetic Design
Uses the same magnetic circuit principles as DJI motors
Offers higher efficiency and significantly extended battery life
-
Durable Titanium Alloy Shaft
Custom step shaft resists bending and detachment during crashes
Φ1.5mm shaft × 3.5mm length
-
Cost-Effective. High-Performance
Materials comparable to motors costing twice as much
Optimized copper winding and N52H arc magnets
Excellent heat dissipation and mechanical strength
Specifications
| Parameter | Value |
|---|---|
| Model | DarwinFPV 2006 CineApe35 |
| KV Rating | 2030KV / 3400KV |
| Voltage | 24V (6S Recommended for 2030KV) |
| Max Current | 16.7A |
| Max Power | 400.8W |
| Stator Size | Φ20 × 6mm |
| Shaft Size | Φ1.5 × 3.5mm |
| Bearing Size | Φ8 × Φ3 × 2mm |
| Configuration | 12N14P |
| Internal Resistance | 209mΩ |
| Motor Size | Φ24 × 21.5mm |
| Weight (with wires) | 20 ± 0.2g |
| Wiring | 22AWG × 150mm |
| Mounting Hole | 12×12mm (M2) |
| Rotor Type | Split design |
| Magnet Type | N52H Arc |
| Winding | Multi-strand copper |
Recommended Application
3–4 Inch Freestyle Drones
3.5 Inch Cinewhoop (e.g.. CineApe35)
5–6 Inch Long-Range FPV Quads
Package Contents (1 piece)
1 × DarwinFPV 2006 Brushless Motor
5 × M2×6mm Hexagon Socket Screws
1 × DarwinFPV Logo Sticker

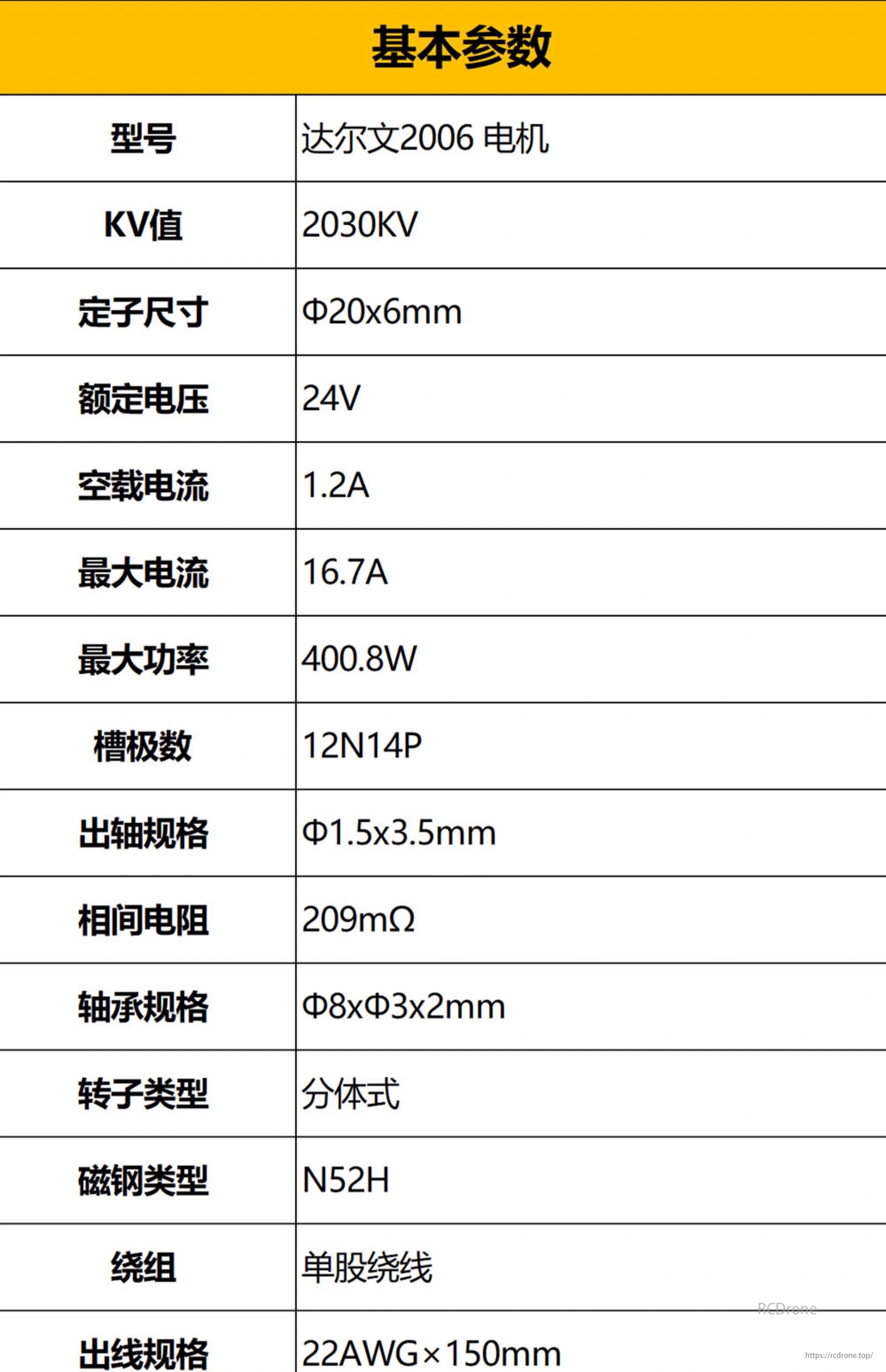

Model: Darwin 2006. KV: 2030. Stator size: 20x6mm. Rated voltage: 24V. No-load current: 1.2A. Max current: 16.7A. Max power: 400.8W. Slots/poles: 12N14P. Shaft: 1.5x3.5mm. Resistance: 209mΩ. Bearings: 8x3x2mm. Rotor: segmented. Magnets: N52H. Winding: single-strand. Wire: 22AWGx150mm.
Installation hole: 12x12mm (M2). Product size: Ø24x21.5mm. Weight: 20±0.2g. Recommended for 3-4 inch FPV. 3.5 inch racing. 5-6 inch long-range drones.
CineApe35 Brushless Motor. 2006 model. high efficiency. longer battery life.
CineApe35 Brushless Motor. model 2006. suits 3.5-inch culvert racing drones better than the 2004 version.
CineApe35 Brushless Motor has a titanium alloy step shaft for better blast resistance. Model: 2006.
| Color |
2006 3400KV, 2006 2030KV |
|---|
