DrUAV M50 50L Sprayer Agriculture Drone

DrUAV M50 50L Sprayer Agriculture Drone Overview

The DrUAV M50 50L Sprayer Agriculture Drone is designed for large-scale agricultural spraying tasks. providing unparalleled efficiency and coverage. With a 50L medicine box capacity. this drone supports extensive operations with a flight time of 28 minutes and a maximum range of 5000 meters. Its advanced features. such as high-strength truss fuselage. 360-degree omnidirectional radar. and dual high-flow impeller pumps. make it an indispensable tool for modern farming.

Core Parameters

1. Medicine Box Capacity: 50L
2. Flight Time: 28 minutes
3. Flight Radius: 5000 meters
4. Spraying Width: 8-20 meters
5. Maximum Spraying Flow Rate: 24L/min

Advantages

1. Superior Capacity and Efficiency: The 50L medicine box enables longer operations without frequent refilling.
2. Advanced Safety Features: The 360-degree omnidirectional radar ensures comprehensive obstacle avoidance. enhancing flight safety.
3. Smart and Autonomous Operations: Equipped with intelligent route planning and autonomous functionality. this drone simplifies agricultural tasks significantly.

DrUAV M50 Detailed Description

Innovative Design

1. Z-Fold Frame: The Z-fold design minimizes storage space by 15%. making the drone easy to transport and deploy.

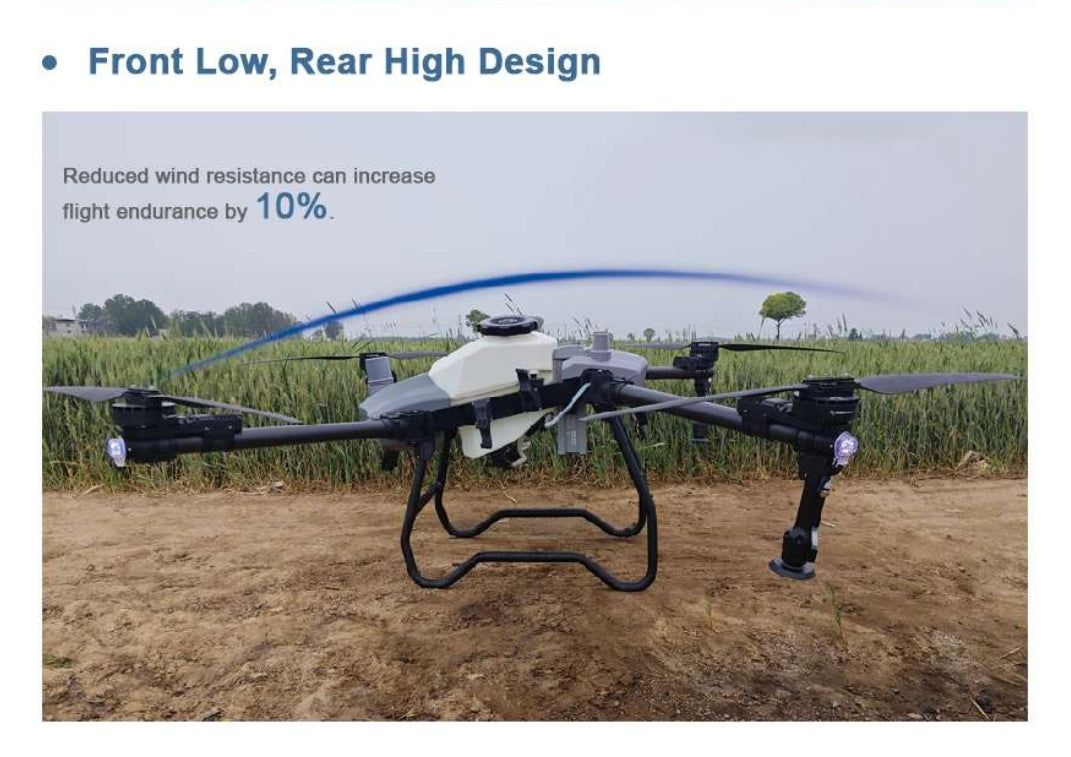

2. Aerodynamic Build: The front low and rear high design reduces wind resistance. improving flight endurance by 10%.
3. Robust Truss Structure: Offers a sturdy. reliable frame. ideal for intensive agricultural use.
4. Snap-Lock Mechanism: This design ensures quick setup and enhanced safety. improving operational reliability by 80% compared to conventional structures.
5. Modular Construction: Features a separable flight control module. RTK module. and receiver module for enhanced flexibility and ease of maintenance.
6. Precision Weighing Module: Enables real-time weighing and automatic calibration. improving spraying accuracy and reducing losses by 75%.

Advanced Spraying System

1. High-Flow Dual Impeller Pumps: Capable of delivering 16 L/min. these pumps ensure efficient spraying with precise liquid separation and flow measurement.
2. Water-Cooled Centrifugal Nozzles: These nozzles effectively lower motor and ESC temperatures. extending their lifespan by 70%. The system delivers droplets as small as 30 microns. ensuring fine spraying.

Intelligent Features

1. Optimized Route Planning: The system autonomously determines the best path for operations. using a continuous liquid level gauge to monitor medication levels and predict exchange points. It matches medication usage with power consumption and provides comprehensive edge scanning and spraying.
2. Efficient U-Turn Pathing: The small U-turn angle allows for smooth and efficient flight transitions.
3. Comprehensive Operation Modes: The drone supports fully autonomous flight with an intuitive app. offering polygon flight route planning for irregular fields. Route memory and area calculation features aid in precise dosage management.
4. Edge Scanning Mode: Customizable edge scanning parameters. including flight circles. speed. and spraying width. maintain consistent operation.
5. Adaptive AB-T Mode: Adjust AB points to modify flight routes. suitable for complex terrain.

DrUAV M50 Technical Specifications

Additional Features

• AB Point Memory: Facilitates repeated route operations by memorizing AB points.
• Autonomous Flight: Reduces the need for manual intervention with fully autonomous flight and spraying capabilities.
• Breakpoint Resuming: Ensures precise continuation of spraying after interruptions.
• GNSS GPS System: Provides accurate positioning and navigation support.
• Ground Station Control: Enables remote operation and real-time monitoring.
• Video Transmission: Offers real-time video feedback for efficient management.
• Omnidirectional Radar: Enhances flight safety with comprehensive obstacle detection.
• Folding Propellers: Simplifies storage and transportation.
• Night Operation: Extends operational hours by supporting night-time flights.
• Compact Folding Design: Facilitates quick deployment and easy portability.
• Waveform Radar: Improves terrain awareness and obstacle detection.
• Extended Range Operations: Supports beyond visual line of sight (BVLOS) missions.
• Stable Flight: Equipped with multiple safeguards to ensure reliable performance.
• Versatility: Suitable for various crops and fruit trees. adaptable to different agricultural needs.
• Multiple Flight Modes: Provides manual and intelligent modes to meet diverse operational requirements.
• All-Terrain Capability: Designed to perform efficiently across various terrains.

What's Include

DrUAV M50 Drone Only:

1 x Whole M50 Agri Drone (Including Drone Fame. Motor. Propellers.Camera.GNSS );

DrUAV M50 Basic Combo:

• 1 x M50-50L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger. AC 110V-240V. Max 9000W)
• 1 x Battery (18S 30000mAh Smart)


DrUAV M50 Standard Combo:

• 1 x M50-50L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger. AC 110V-240V. Max 9000W)
• 2 x Battery (18S 30000mAh Smart)
• 1 x Granular Spreader

DrUAV M50 Pro Combo:

• 1 x M50-50L Agriculture Drone
• 2 x Centrifugal Nozzle
• 2 x Spraying Pump (Brushless high-pressure)
• 1 x Remote Controller (High brightness with 5.5-inch screen)
• 1 x Maintenance Toolkit
• 1 x Charger (Dual way quick charger. AC 110V-240V. Max 9000W)
• 4 x Battery (18S 30000mAh Smart)
• 1 x Granular Spreader
• 1 x Pair Avoidance Radar(Front+Rear)
• 1 x Terrain Following Radar
• 1 x 360° Radar

More Accessories

There are more accessories available below. which can be purchased separately. Please contact customer service if you need them.

DrUAV M50 Details
