EFT E620P 20L Agriculture Drone - 6-Axis Agri Drone Frame 20L Water Tank Spray and 8L Spreader Hobbywing X9, JIYI K++ V2, Skydroid H12, Tattu Pro 22000mAh Battery
Description
Note:if you need battery or other accessories. pls contatc us. thanks!

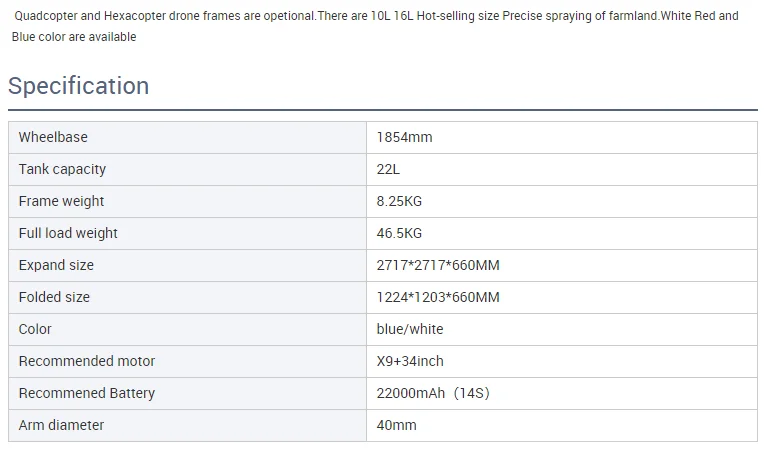

EFT E620P 20L Agriculture Drone Specifications
Wheelbase :1854 mm
Expanded size: 2717*2717*660mm
Folding size: 1224*1203*660mm
Tank capacity :22L
Frame weight : 8.25kg
Color: blue/ white
Full load weight :46.5kg
Recommended motor : X9 +34 inch propeller
Recommended battery : 14S 22000mah
Arm diameter: 40mm
Packing list: E620p frame + 20L water tank
Pacakge included:
Package 1:
EFT E620P 6 Axis 20L Drone Frame Kit
Package 2:
EFT E620P 6 Axis 20L Drone Frame Kit
20L Water tank x1
Brushless 8L Spraying System x 1
Hobbywing X9 Power System for drones x 6 (3CW+3CCW)
JIYI K++ V2 Flight Controller x 1
Skydroid H12 Remote Controller x 1
Camera x1
20L Water tank x1
Brushless 8L Spraying System x 1
Hobbywing X9 Power System for drones x 6 (3CW+3CCW)
JIYI K++ V2 Flight Controller x 1
Skydroid H12 Remote Controller x 1
Camera x1
Package 3:
EFT E620P 6 Axis 20L Drone Frame Kit
20L Water tank x1
Brushless 8L Spraying System x 1
Hobbywing X9 Power System for drones x 6 (3CW+3CCW)
JIYI K++ V2 Flight Controller x 1
Skydroid H12 Remote Controller x 1
Camera x1
20L Water tank x1
Brushless 8L Spraying System x 1
Hobbywing X9 Power System for drones x 6 (3CW+3CCW)
JIYI K++ V2 Flight Controller x 1
Skydroid H12 Remote Controller x 1
Camera x1
Tattu pro 22000mah 14s battery x1
PC2500w charger x1
Note:if you need battery or other accessories. pls contatc us. thanks!
The EFT E620P 6 Axis drone is the 6 axis quacopter with 22kg payload for agriculture spraying. The E620P agriculture drones continues the classic design elements of the old E series. It adopts a streamlined body design. and the whole body is waterproof. without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple. the fuselage is integrated from dozens of original parts into a whole. and the fuselage is made of high-strength and impact-resistant materials. which are strong and anti-fall.
EFT E620P 20L Agriculture Drone Features
One Body. Strong and Durable:
- The E620P boasts a new one-piece molding process. simplifying the fuselage into a robust. impact-resistant whole. This design enhances strength. durability. and resistance to falls. crucial in the unpredictable agricultural environment.
Classic Folding Body:
- Building on a classic foldable body design. the E620P ensures ease of transportation and transition. The familiar foldable structure aligns with practicality. a hallmark of effective agricultural drones.
Fully Waterproof Body:
- The integrated waterproof design of the E620P supports washing. demonstrating a commitment to maintaining the drone in optimal condition. The star blue paint not only enhances appearance but also reflects a keen eye for aesthetics.
Integrated Power Supply Wiring:
- Streamlining power supply wiring by centralizing power and separating signal and power supply reduces interference. contributing to the overall reliability of the drone.
Classic Tank Design:
- The inclusion of the classic 16L tank. a widely used and stable load solution. positions the E620P as a versatile and reliable choice for precision spraying in agriculture.
Detachable Camera Mount:
- A thoughtful addition. the detachable camera adapter on the front of the frame allows for flexibility in camera installation based on specific needs.

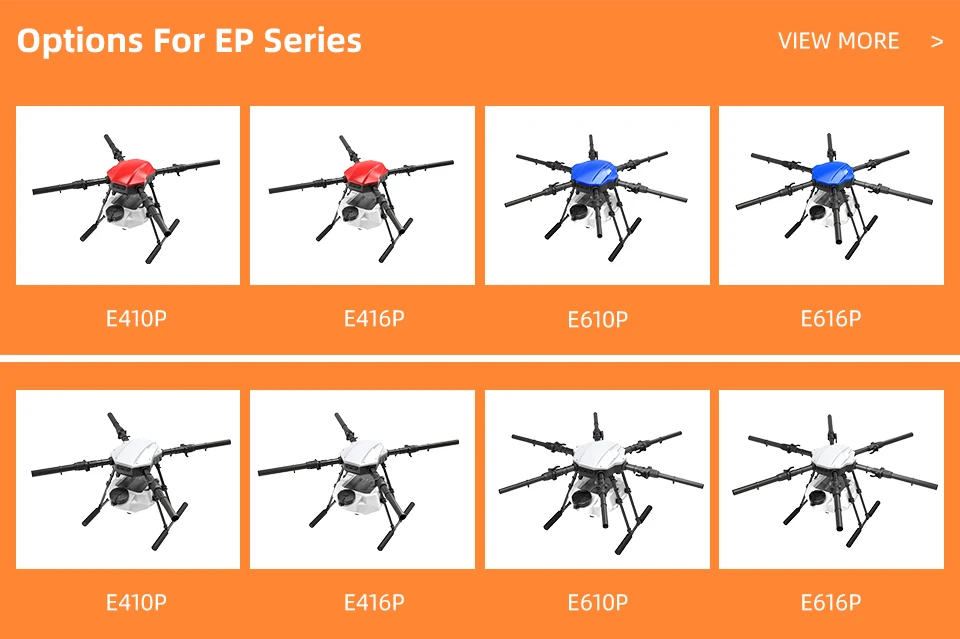

Options for EP Series:
- The E620P is part of the EP Series. offering options like E416P. E616P. E410P. and E610P. These variations cater to diverse preferences and specific agricultural requirements.
EFT E620P 20L Agriculture Drone Review Video

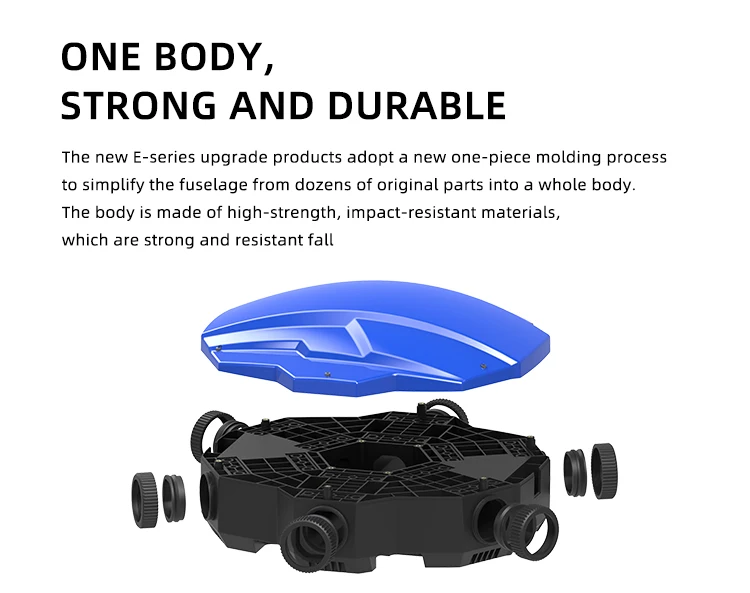

ONE BODY. STRONG AND DURABLE
The new E-series upgrade products adopt a new one-piece molding process to simplify the fuselage from dozens of original parts into a whole body. The body is made of high-strength. impact-resistant materials. which are strong and resistant fall
CLASSIC FOLDING BODY
Classic folding body. the new product continues the classic foldable body design. which is convenient for transportation and transition
FULLY WATERPROOF BODY
The body adopts an integrated waterproof design. supports washing. and the surface of the shell is painted with star blue. which is beautiful in appearance and eye-catching colors
INTEGRATED POWER SUPPLY WIRING
Integrated power supply wiring. centralized power supply. separate signal and power supply. reduce interference

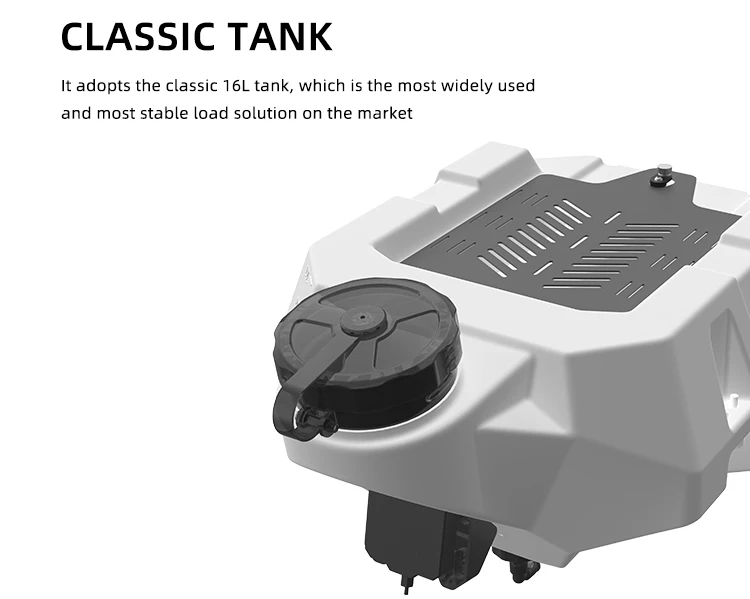

CLASSIC TANK
It adopts the classic 16L tank. which is the most widely used and most stable load solution on the market
DETACHABLE CAMERA MOUNT
A detachable camera adapter is designed on the front of the frame. which can be installed or closed according to needs
The E620P features a detachable camera mount. located at the front of the drone's frame. This allows for easy installation or removal as needed.
The E620P agriculture drone offers optional quadcopter and hexacopter frames. with three hot-selling sizes available: 16L. The drone features precise spraying capabilities for farmland. with a choice of colors including white. red. and blue. Key specifications include a wheelbase of 1854mm. a tank capacity of 22L. a frame weight of 8.25KG. and a full load weight of 46.5KG. The drone's expanded size measures 2717*2717*660MM. while its folded size is 1224*1203+660MM. Available colors include blue and white. with the recommended motor being the X9+34inch.
Package Information:Main Product Dimensions: 71cm x 440mm x 210mmAccessories Included:Bee888 Main Body
Product Dimensions:Main Product Size: 580mm x 385mm x 320mmPackage Information:Accessories Included:
Additional Information
| Pacakge |
1, 2, 3 |
|---|
EFT E620P 20L Agriculture Drone - 6-Axis Agri Drone Frame 20L Water Tank Spray and 8L Spreader Hobbywing X9, JIYI K++ V2, Skydroid H12, Tattu Pro 22000mAh Battery
