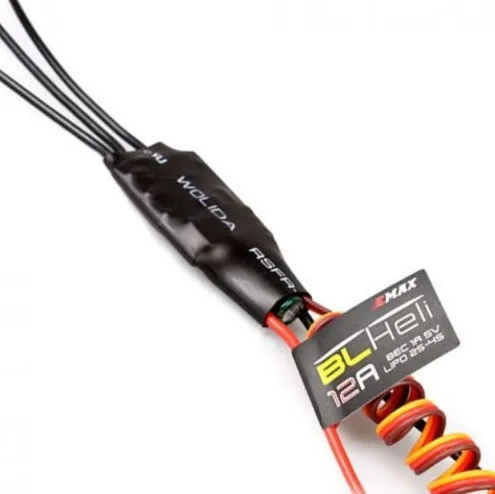

Emax ESC Speed Controller - 1pcs Emax 12A BLHELI ESC 1A 5V Speed Controller For FPV QAV250 280 270 Quadcopter FPV Multicopter Drone
SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: BLHELI 12A ESC
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: Hoenvesta
Features:
Based on Emax BLHELI firmware. further optimized to the perfect drive performance.
Low-voltage protection. over-heat protection and self-check functions.
Separate power supply for MCU and BEC. enhancing the ESC's ability of eliminating magnetic interference.
Parameters of the ESC can be set via program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in linear BEC or switch BEC.
Max speed: 210.000 rpm for 2-pole. 70.000 rpm for 6-pole. 35.000 rpm for 12-pole.
Specifications:
Continuous Current: 12A
Burst current (10S): 15A
Li-xx Battery (cell): 2-3
Dimension (L * W * H): 25mm x 20mm x 7mm
Weight wires Included: 9
BEC Mode: Linear
BEC Output: 1A / 5V
Programmable: Yes
Package Including:
1 x BLHELI-12A ESC
