FLYSKY FTR12B 2.4GHz 12CH Receiver - for RC Airplane Helicopter Vehicle Dual Antennas for PL18 NB4 NB4 Lite AFHDS3 Transmitters
FLYSKY FTR12B 2.4GHz 12CH Receiver SPECIFICATIONS
Brand Name: abay
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Receivers
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: NONE
Remote Control Peripherals/Devices: Receivers
Tool Supplies: Tools
Quantity: 1 pcs
Four-wheel Drive Attributes: Assemblage
Choice: yes
Features:
This FTR12B receiver is able to apply to fixed-wing. glider. helicopter. engineering vehicle. etc.
The FTr12B receiver is compatible with all AFHDS 3 transmitters and RF modules including PL18. NB4. NB4 Lite. FRM302. etc.
It can output standard PWM. PPM. i.BUS out and S.BUS signal.
With a compact size and light-weight. no worry to give any burden to your RC drone.
Warranty: If there are any problems. please contact our store in time. We will give you a satisfactory solution.
Specification:
Product Name: FTr12B
Model Type: fixed-wing. glider. helicopter. engineering vehicle. etc
PWM Channels: 11(Version 2.0 will be upgraded to 12 channels)
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Dual Antennas
Input Power: 3.5~9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 39 x 32 x 15mm
Weight: 15g
Package Information:
Size: 84 x 64 x 38.4 mm
Weight: 62g
Package List:
1 x Receiver
1 x Cable
Nen12 NB; 711 NPC1O 6us CLERV 35-9VIDC FTr128 12 CHANNEL Nazftri2Boo 24GHz RECEivER elnd Tccid:

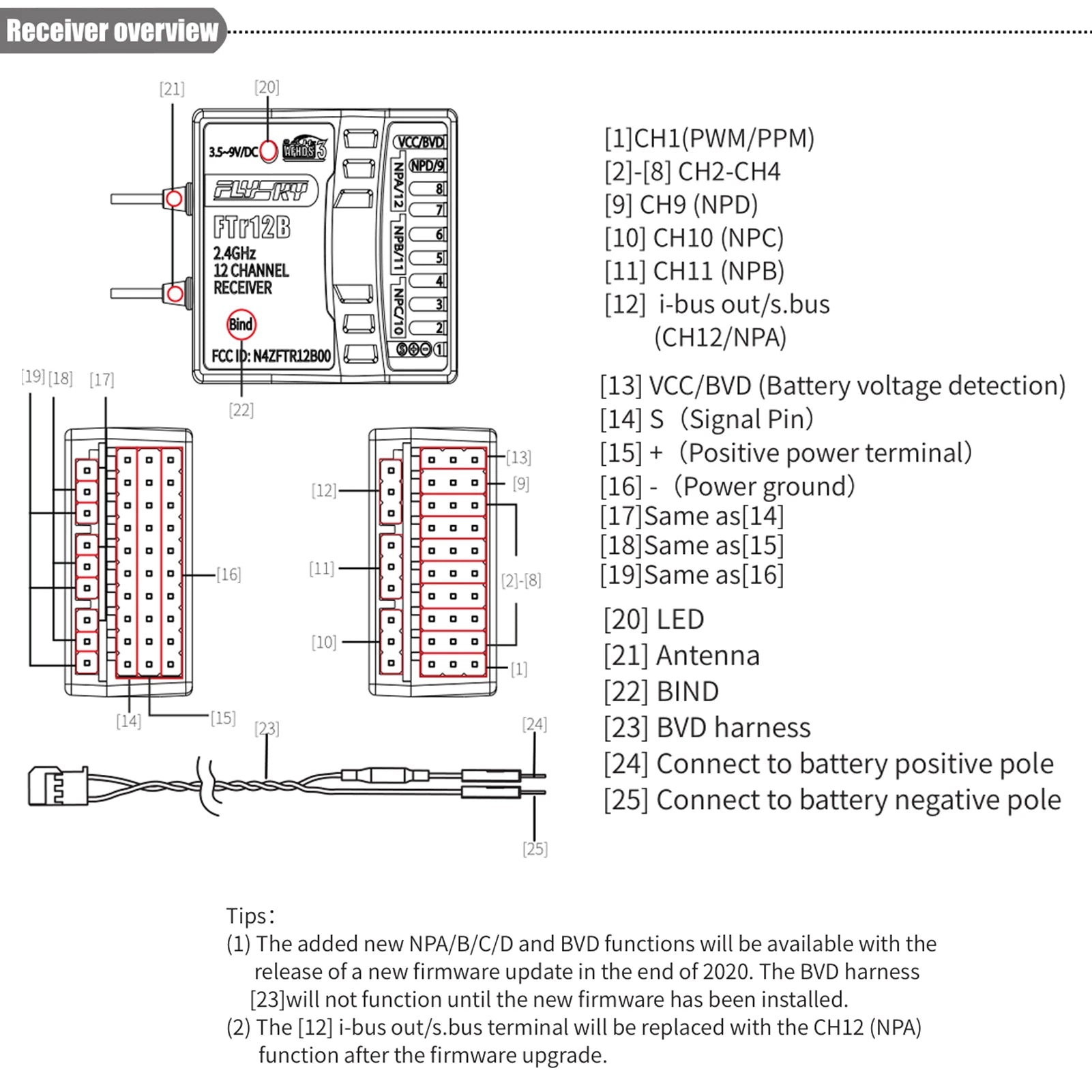

This receiver is equipped with Flysky's third-generation Automatic Frequency Hopping Digital System (AFHDS 3). supporting standard PWM. PPM. and output for i.BUS and S.BUS signals.
After the firmware update. the i-BUS and S-BUS terminal will be replaced with Channel 12 (NPA) function. Additionally. the BVD harness should be connected to the positive battery terminal.
