Hawkeye Firefly Fortress Micro FPV Camera - AIO 2.1mm 1/3 960H TVL Mini Camera w/ 5.8G 200mW Transmitter VTX for Drone 1S - 6S RC Car

$29.46

Color: VTX

VTX
Camera
VTX Camera
Add to Wishlist
Ask a Question
SKU: 4000762416550-VTX
Availability: In Stock Pre order Out of stock
Categories: Camera FPV
Description

Hawkeye Firefly Fortress Micro FPV Camera SPECIFICATIONS

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Receivers

RC Parts & Accs: Transmitters

Model Number: Mini Camera+VTX

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Hawkeye Firefly Fortress Micro FPV Cam AIO 2.1mm 1/3 960H TVL Mini Camera w/ 5.8G 200mW Transmitter VTX for Drone 1S - 6S RC Car


Description:
Brand Name: Hawkeye
Series Name: Firefly
Item Name: Fortress
Version: Ver 2.2
Color: Black
Small size and lightweight.
2.1mm M8 960H TVL FPV lens.
Support 1S.2S-6S battery.
AIO available. with well protected shell.
Support 6 Adjustable setting modes.

Camera Specification:
Image Sensor:1/3 inch CMOS
Horizontal Resolution:960H TVL
TV System:NTSC/PAL
Image: 4:3 / 16:9
Min Illumination 0.1Lux(Color) / 0.001Lux(B&W)
Lens: M8. 2.1mm
S/N Ratio:> 60dB
Video Output :CVBS
Voltage Output:5V - 300mA
Power Input:5-36V (No transmitter added)
6-36V (transmitter added)
3.5-4.3V (Change to 1S Battery input)
Working Voltage:1S . 2S-6S LiPo
Working Temperature:-20℃ ~ +60℃
Net Weight:8g
Dimension:19x22x22mm
Language: English / Chinese

Transmitter Specification:
Supply Power:3.3-5.5V
Input Impedance:75Ω
Tx Power:0/25/50/200mW
Frequency:5.8GHZ
Channel: 48/72CH
Antenna connector:MMCX
Size:18*20mm
Weight:2g
Transmitter Channel Button:
Press Once: Channel switch from 1 to 8.
Press 2 seconds: Channel group switch from A to F. or H.
Press 10 seconds: Change power: 0mw.25mw.50mw.200mw.

Band Resistor(0Ω):
Soldered: 48 channels (Default)
Removed: 72 channels

Hawkeye Firefly Fortress Micro FPV Camera - AIO 2.1mm

Mode Setting:
Press and hold Left key to switch: Cloudy.Indoor.Lightrax.Twilight.Personal.Sunny.
You could adjust the settings in each mode.

Power Setting & Low Power Alarm Setting:
Press and hold Right key to adjust the power value; Press Left button to set the alarm power.
You could adjust the power by pressing up/down button.

Package Included（optional ）:
1 x Fortress 2.1mm 4:3 16:9 Micro FPV Camera+Transmitter VTX AIO

Hawkeye Firefly Fortress Micro FPV Camera. Cloudy.Indoor.Lightrax.Twilight.Personal.Hawkeye Firefly Fortress Micro FPV Camera. Power Setting & Low Power Alarm Setting: Press and hold Right key to adjust the power valueHawkeye Firefly Fortress Micro FPV Camera. Camera Specification: Image Sensor:1/3 inch CMOS Horizontal Resolution:960HHawkeye Firefly Fortress Micro FPV Camera. press 2 seconds: Channel group switch from A to F. or H . Press 10 secondsHawkeye Firefly Fortress Micro FPV Camera - AIO 2.1mmHawkeye Firefly Fortress Micro FPV Camera. you could adjust the power by pressing up/down buttonHawkeye Firefly Fortress Micro FPV Camera. Package Included( optional ): 1 x Fortress 2.1mm 4:3Hawkeye Firefly Fortress Micro FPV Camera. AIO available. with well protected shellHawkeye Firefly Fortress Micro FPV Camera - AIO 2.1mmHawkeye Firefly Fortress Micro FPV Camera. AIO available. with well protected shellHawkeye Firefly Fortress Micro FPV Camera. press 2 seconds: Channel group switch from A to F. or H . Press 10 secondsHawkeye Firefly Fortress Micro FPV Camera. you could adjust the power by pressing up/down buttonHawkeye Firefly Fortress Micro FPV Camera. 73 fireFLy Explore the @EW Worl! Hawkeye Firefly For

Explore the world with Hawkeye's Firefly Fortress Micro FPV Camera. featuring an all-in-one (AIO) design with a 960H TVL resolution. available in a compact 19mm x 22mm size.

Hawkeye Firefly Fortress Micro FPV Camera. Well Protected shell 1S.2S-6S battery compatible 6 adjustable settings modes

Well-protected shell for 1S to 6S batteries. featuring 6 adjustable setting modes.

Hawkeye Firefly Fortress Micro FPV Camera. Power Setting & Low Power Alarm Setting: Press and hold Right key to adjust the power valueHawkeye Firefly Fortress Micro FPV Camera. can only weld two points. can't welde 3 points togetherl Ka

Note: This camera can only be powered by two points. not three. Default compatibility: 1S battery (can also power 2S-6S batteries).

Hawkeye Firefly Fortress Micro FPV Camera. Image sensor 1/3 inch Horizontal Resolution 960 H TVL TV System NTSCIPAL Image

Specifications:* Image sensor: 1/3 inch* Horizontal resolution: 960H TVL* TV system: NTSC/IPAL* Image format: 4:3 or 16:9* Minimum illumination: + Color: 0.01 lux + B&W: 0.01 lux* Lens: M8. 2.1mm. sin ratio: 60dB* Video output: CVBS* Voltage output: SV-30mA. 5-36V (without transmitter); with transmitter. 3.5-4.3V (compatible with 1S battery input)* Work temperature: -20°C to +60°CNote: The power input is 36V when the transmitter is added. and 3.5-4.3V when using a 1S battery.

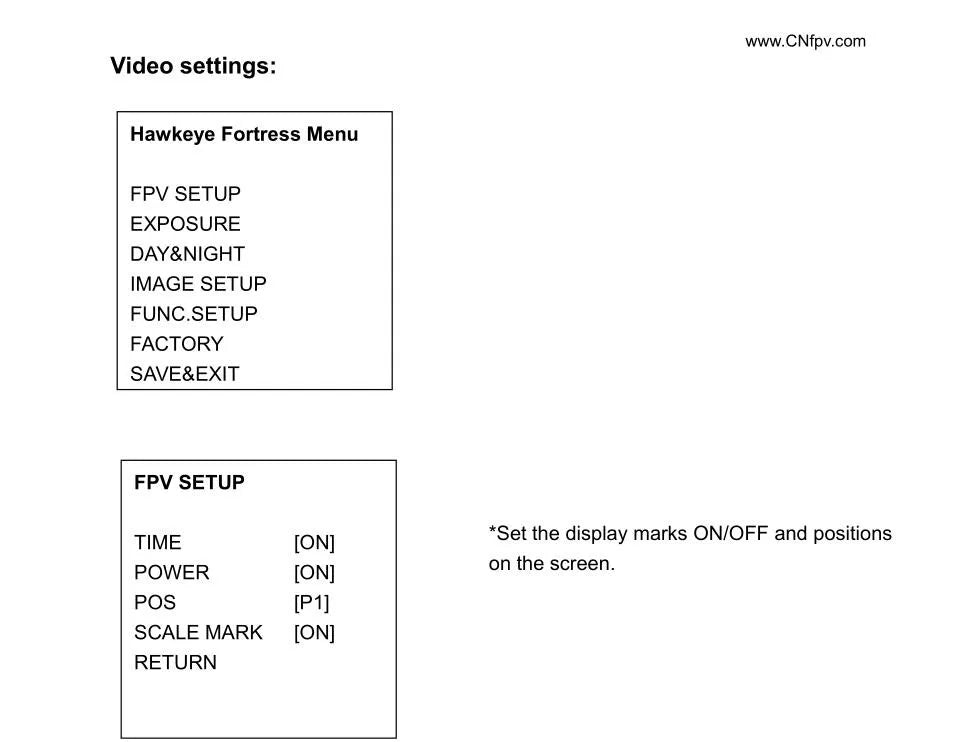

Hawkeye Firefly Fortress Micro FPV Camera. FPV Screen: Mode SUNNY SCALEMARK 01.05 8.1VHawkeye Firefly Fortress Micro FPV Camera. Set the display marks ONIOFF and positions on the screen: POWER ON

FPV Setup Instructions:* Factory Save/Exit + Set display marks: ON/OFF + Position on screen: - POWER: ON - POS: P1 - SCALE MARK: On + RETURN

Hawkeye Firefly Fortress Micro FPV Camera. #Set the exposure value. bigger brighter: #Metering: average. up.

Camera Settings:* Exposure Value: Set the brightness level by adjusting the value (current setting: 10) + Metering Mode: - Average - Up - Down - Center* Image Color/Black & White: + Day/Night Mode: COLOR

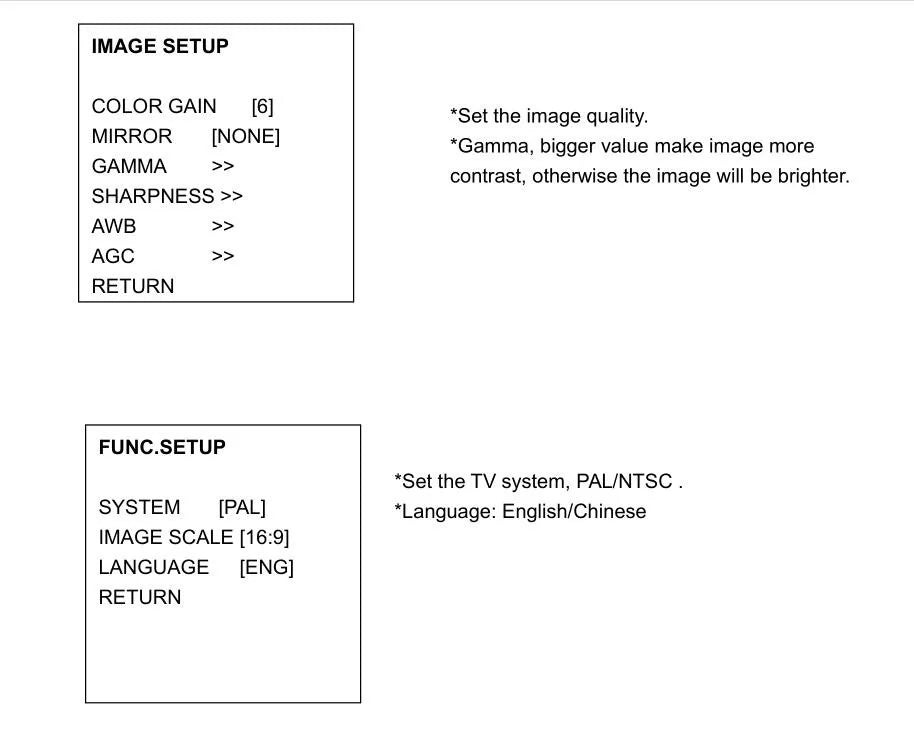

Hawkeye Firefly Fortress Micro FPV Camera. #Set the image quality: MIRROR NONE #Gamma.

Image Settings:* Color Gain: Adjust the color gain level to 6 + Image Quality: Mirror mode NONE* Gamma Correction: + Larger values will result in a more contrasted image. otherwise the image may appear brighter + Sharpening: + Auto White Balance (AWB): + Automatic Gain Control (AGC): * Return to Function Setup 16.9

Hawkeye Firefly Fortress Micro FPV Camera. Hawkeye Firefly Fortress Micro

Channel Settings:* Channel Group Switch: + Select from A to F (or H) and press the button for 10 seconds* Power Adjustment: + Choose from OmW. 25mW. SoMW. or 2OOmW
