Description:

Item type:Electronic Speed Controller

Input Connectors:XT60 Connectors
LCD Program Box: Not Supported
Item Name:Hobbywing QuicRun 1
SET Button on ESC:Supported
Weight:58.5g (w/Wires)
Program Port: Separate Program Port
Input Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1
LED Program Box:Supported
Firmware Upgrade:Not Supported
Note: All the wire length above is the length not the length you see from the outside
Applications Motors:Brushed Motor (540/550/775 size motors)
KV Rating/T Count:Brushed Motor Limit with 2S LiPo/6S NiMH
Output Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1
BEC Output:Switch  Mode
Cont./Peak Current:80A/400A
Applications Vehicles:Brushed Motor (540/550/775 size motors)
WiFi Module:Not Supported
Input Voltage:2-3S Lipo/5-9 Cell NiMH
Output Connecotors:No

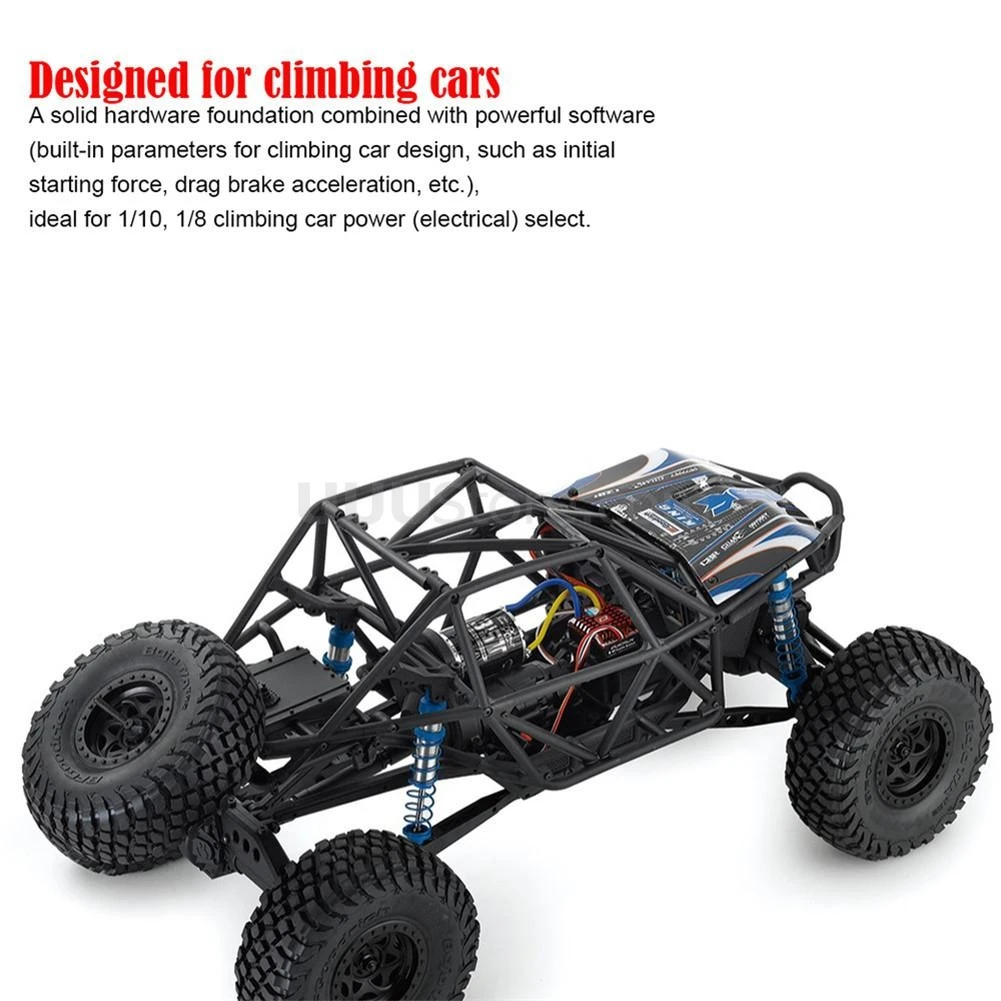

Applicable models: 1/8th & 1/10th climbing car
Size:36.2x31.6x17.0mm

Packing list:

1*Hobbywing QuicRun Waterproof Brushed 80A ESC
1*Program Card for Crawler

Note:

The colors deviation might differ due to different monitor settings.

If you need to buy motor.Please add this one.
