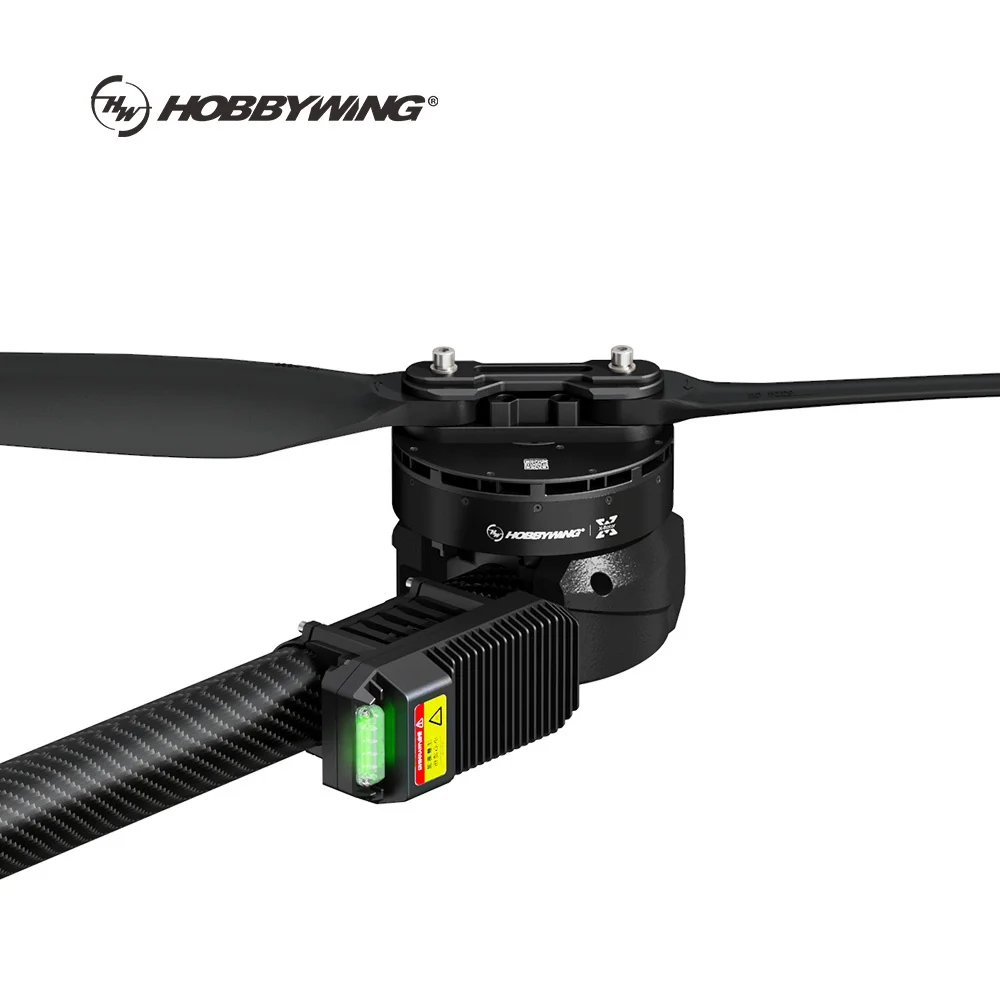

The Hobbywing X15 Power System is the latest 2024 innovation designed specifically for heavy-load agricultural drones. This high-performance brushless motor system offers exceptional efficiency and power. making it the ideal solution for demanding agricultural applications.
Hobbywing X15 Specifications:
| Specification | Details |
|---|---|
| Model | Hobbywing X15 |
| Release Year | 2024 |
| Design Purpose | Heavy-load power system for agricultural drones |
| Maximum Thrust | 71 kg |
| Rated Thrust | 37.5 kg |
| Rated Efficiency | 8.0 g/W |
| Drone Capacity | Can build a quadcopter with a 150 kg payload |
| Frame Configuration | 60 mm diameter tubular frame |
| Recommended Battery | 14S/18S |
| Operating Pulse Width | 1050-1950 µs |
| Rated Power | 5000 W |
| Recommended Propeller | 63*24'' carbon composite |
| Recommended Drone Type | Quadcopter. 150 kg payload |
| Product Weight | 5100 g |
| Compatible Tube Diameter | 60 mm |
Note: This product is currently on pre-sale and the price is not the actual price
Key Features:
- Intelligent Parameter Tuning: Allows users to adjust parameters themselves. providing greater flexibility and control.
- Integrated Design: Modular design ensures easier installation and maintenance. enhancing overall operational efficiency.
- Comprehensive Flight Controller Compatibility: Supports mainstream open-source flight controllers including APM. Microk. Boying. JIYI. Qifei. and Jimu. ensuring wide compatibility and adaptability.
Product Description:
The Hobbywing X15 Power System is a high-efficiency. high-performance brushless motor system tailored for heavy-load agricultural drones. Designed for robust agricultural tasks. it delivers a maximum thrust of 71 kg and a rated thrust of 37.5 kg. making it the perfect choice for drones requiring substantial lifting power. Its modular integrated design and intelligent parameter tuning provide ease of use and maintenance. ensuring optimal performance and reliability.
Supporting a variety of mainstream flight controllers such as APM. Microk. Boying. JIYI. Qifei. and Jimu. the X15 system guarantees extensive compatibility and flexibility. It is recommended to use with 14S or 18S batteries and 63*24'' carbon composite propellers to achieve peak efficiency and performance.
This powerful system is an essential component for any agricultural drone. significantly enhancing efficiency and precision in agricultural operations to meet the demands of modern agriculture.
Hobbywing X15 Motor: Heavy-Duty Agriculture Power System. Key Specifications: Continuous Current - 350W. Peak Current - 620A. Stall Torque - 1050-1950u5 Nm. RPM Range - 12-18S. Motor Efficiency - 97.5%. Dimensions - 97.5*75*278mm. Weight - 4m150kg. and other features: High-Speed Cooling System. Advanced Thermal Management. and IP65 Waterproof Rating.
