iFlight XING 1002 FPV Motor 19000KV / 22000KV with 1.5mm Shaft for FPV spare parts
iFlight XING 1002 FPV Motor SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 12.5x8mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING 1002
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
- Model: XING 1002 Black Motor
- KV: 19000KV/22000KV
- Weight(included wire): 2.4g
- Dimension: φ12.5*8mm
- Interphase Resistance: 0.086Ω/0.070Ω
- Input Volts: 4V
- Peak Current: 5.3A/ 7.8A
- Max Watt: 19W/ 28W
- Mounting Holes: 3*3 φ1.4mm
- Rotor Specifications: Segmented bell
- Shaft Diameter: 1.5mm
- Shaft Protruding Length: 3.5mm
- Lead: 50mm/28AWG/SH1.25
- Magnet: N52H Curved
- Configuration: 9N12P
- Bearing Type: NSK
- Bearing Specification: φ4*φ2*1.5
-
Winding: Single Strand copper winding
- 1 x XING 1002 FPV Motor(KV is optional)
- 4 x M1.4*4mm screws

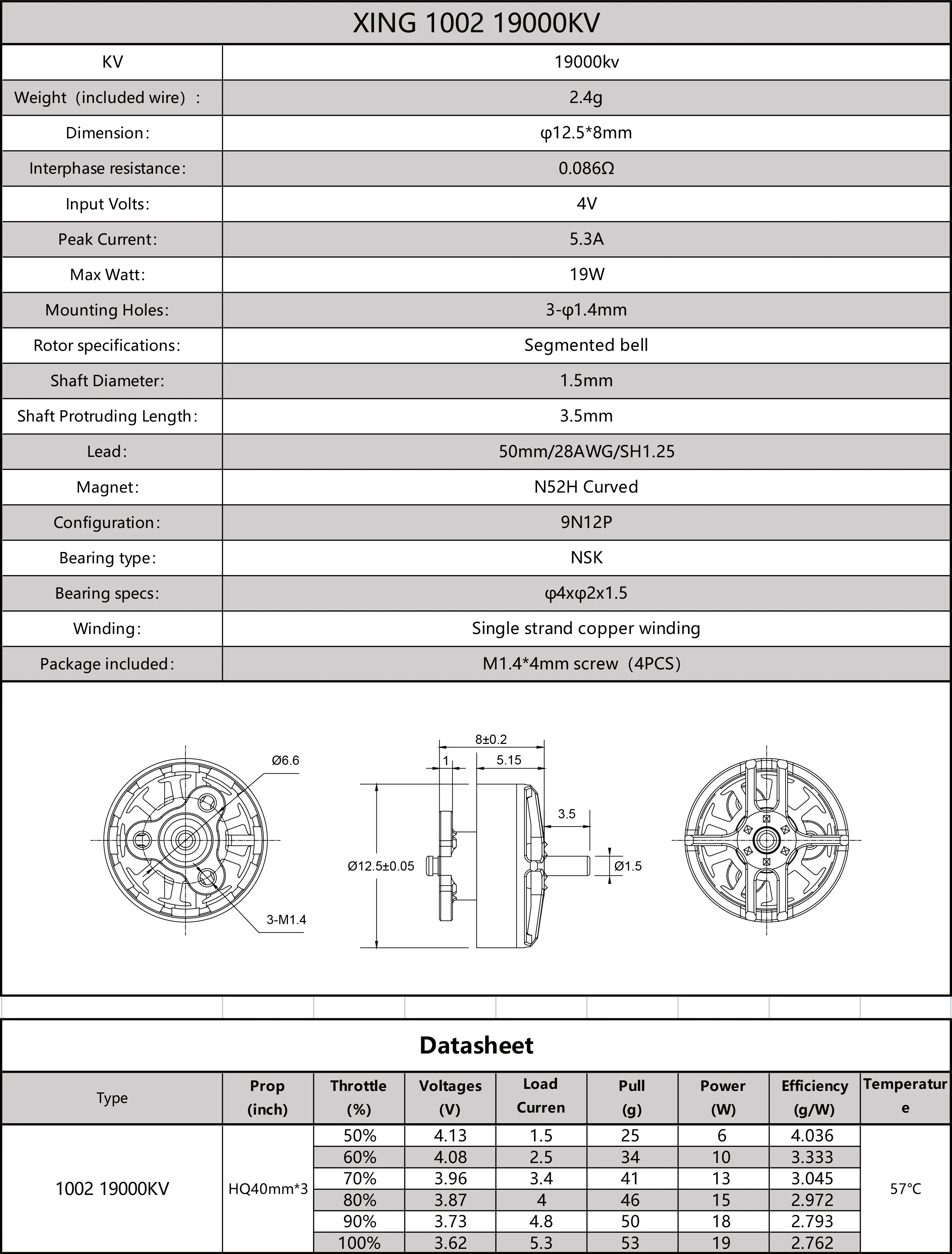

XING 1002 19000KV KV 19000kv Weight (included wire) 2.4g Dimension: 412.5*8mm Interphase resistance: 0.08602 Input Volts: 4V Peak Current: 5.3A Max Watt: 191 Mounting Holes: 3-01.4mm Rotor specifications: Segmented bell Shaft Diameter: 1.Smm Shaft Protruding Length: 3.Smm Lead: 50mm/28AWG/SH1.25 Magnet: NSZ
The iFlight XING 1002 FPV motor has the following specifications: KV rating of 22.000 (22000KV). weight including wires of 2.4 grams. dimensions of 41.25mm in length and 8mm in width. interphase resistance of 0.07002 ohms. input voltage of 4 volts. peak current of 7.8 amps. maximum wattage of 281 watts. and three mounting holes with a diameter of 3.27mm.
| Color |
1pc 19000KV, 4pcs 19000KV, 1pc 22000KV, 4pcs 22000KV |
|---|
