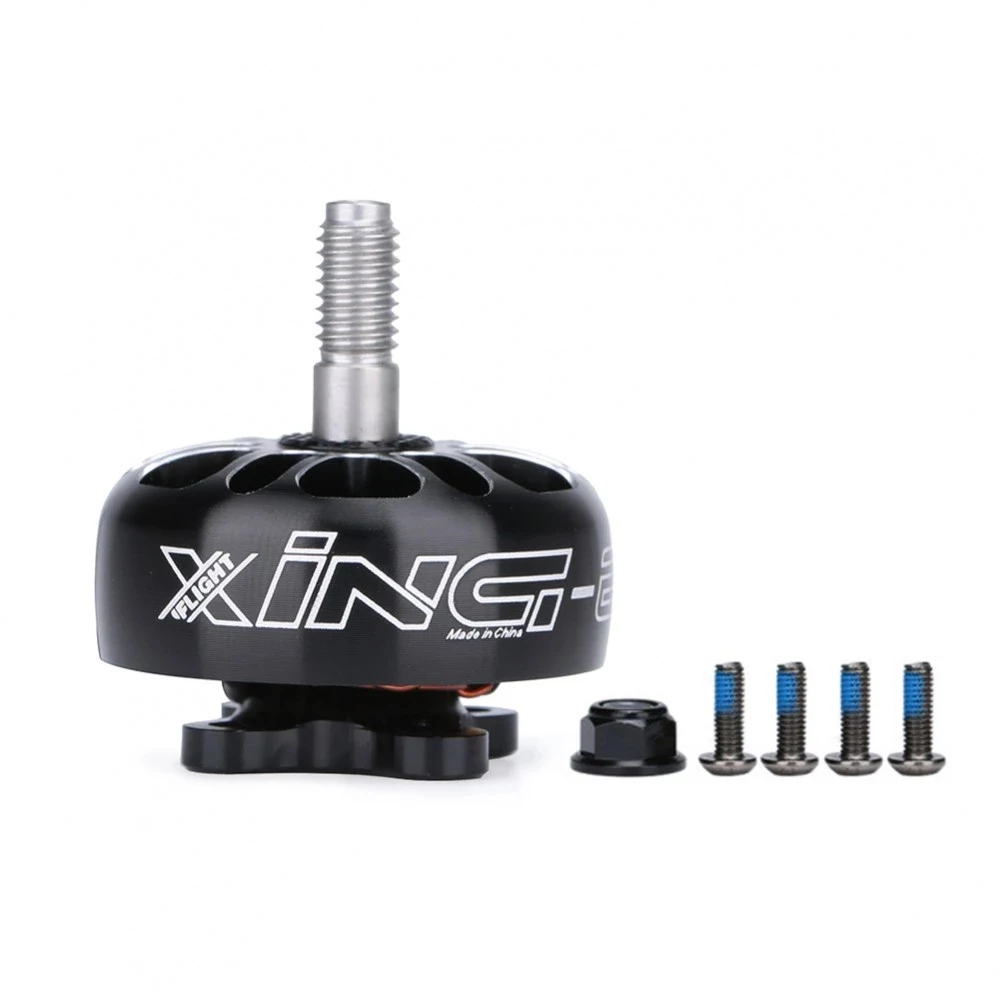

IFlight XING-E 2306 PRO 2450KV 4S 1700KV 6S Brushless Motor for FPV Racing Freestyle Long Range 5inch Drones Replacement Parts
SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Tool Supplies: Battery
Remote Control Peripherals/Devices: Motor
Recommend Age: 18+
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Material: Metal
For Vehicle Type: Helicopters
Brand Name: NoEnName_Null
ITEM DESCRIPTION:
PRODUCT DESCRIPTION
XING-E Pro series are very strong and powerful FPV motors for FPV racing. great value choice with well known XING performance. focus on quality. the XING-E Pro series affordable motors that are strong and durable.
This 2306 sized motor features a high-strength 4mm steel hollow shaft. Single strand windings for performance. M3 shaft screw. and larger 9x4x4mm NSK bearings.
Features:
-High-strength 4mm Steel shaft
-N52SH High-temperature magnets. NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-6061 CNC machined aluminum top and base parts
-Hex bolt shaft set screw
Specifications:
-Configuration: 12N14P
-Stator Diameter:24mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension:29.5x18.7mm
-Weight:33.1g (150mm wires)
-Idle Current @12.6v (Io):2.1A
-Cells (LiPo): 2-6S
-Max Burst Current <10s:55.22A
-Max Power (W) 60s:885.4W
-Internal Resistance (Rm):40.6mΩ
-Motor Wire Length: 150mm / 20AWG
ITEM PICTURE:
Communication: Shipping Speed: If you have any questions; please feel free to contact us until you are satisfied:
| Color |
1PC 2450KV, 1PC 1700KV, 4PCS 2450KV, 4PCS 1700KV |
|---|
