JX Servo PDI-6221MG - 6V 20KG 180° 360° Large Torque Digital Aluminium Metal Gear 25T Arm for RC Car Model Toy Crawler Boat Airplane

$25.27 $18.05

Color: 60 degree

60 degree
180 degree
360 degree
1PCS 60 degree 25T
1PCS 180 degree 25T
1PCS 360 degree 25T
4PCS 60 degree
4PCS 180 degree
4PCS 360 degree
4PCS 60 degree 25T
4PCS 180 degree 25T
4PCS 360 degree 25T
25T Arm
Add to Wishlist
Ask a Question
SKU: 1005005487010812-60 degree
Availability: In Stock Pre order Out of stock
Categories: Servo
Description

JX Servo PDI-6221MG SPECIFICATIONS

Brand Name: JX Servo

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembly Category

Technical parameters: Value 6

Model Number: PDI-6221MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

JX 20KG Servo PDI-6221MG 180° 360° Large Torque Digital Aluminium Metal Gear 25T Arm for RC Car Model Toy Crawler Boat AirplaneJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo. Servo PDI-6221JX Servo PDI-6221MG 180° 360° Large TorqueJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo. 8 1 SERVO 6221MG DIGITAL MadeiMChuJX Servo. SERVQ DIGITAL 3 42 01835) DZL PlzzJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. Olt 9ras JX Siatae LPDI-6221MG-JX Servo. E ZIZZZL Uro 1180 PDI-6221MG-180JX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. 1 1 sERvO 6221MG-360 DIshA JX Servo. biGna Xe Ceitoltt 7X LDIJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. 7u 2IMG-360 SERVO 2824 SERVO DIGIJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. Co LII Servo JXservo WwwJJX-BeaJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo. 2.Item color displayed in photos may be slightly different on your computer monitor since monitors areJX Servo PDI-6221MG 180° 360° Large TorqueJX Servo PDI-6221MG 180° 360° Large Torque

Features:
-- High performance digital standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- CNC aluminium middle Shelf
-- Dual ball bearings

Specifications:
Model:PDI-6221MG
Dead -band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62g (2.18oz)
Steering angle: 0-120 degree
Connector Wire Length: JR 260 mm
Bearing: 2BB
Usage: For RC Models

Model:PDI-6221MG-180

Brand: JX
Max Angle:180°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg.cm (281.89 oz/in)
Connector Wire Length: JR 265 mm (10.43in)
Suit for 1/10 1/8 RC Car Boat
Bearing: 2BB
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight:62g

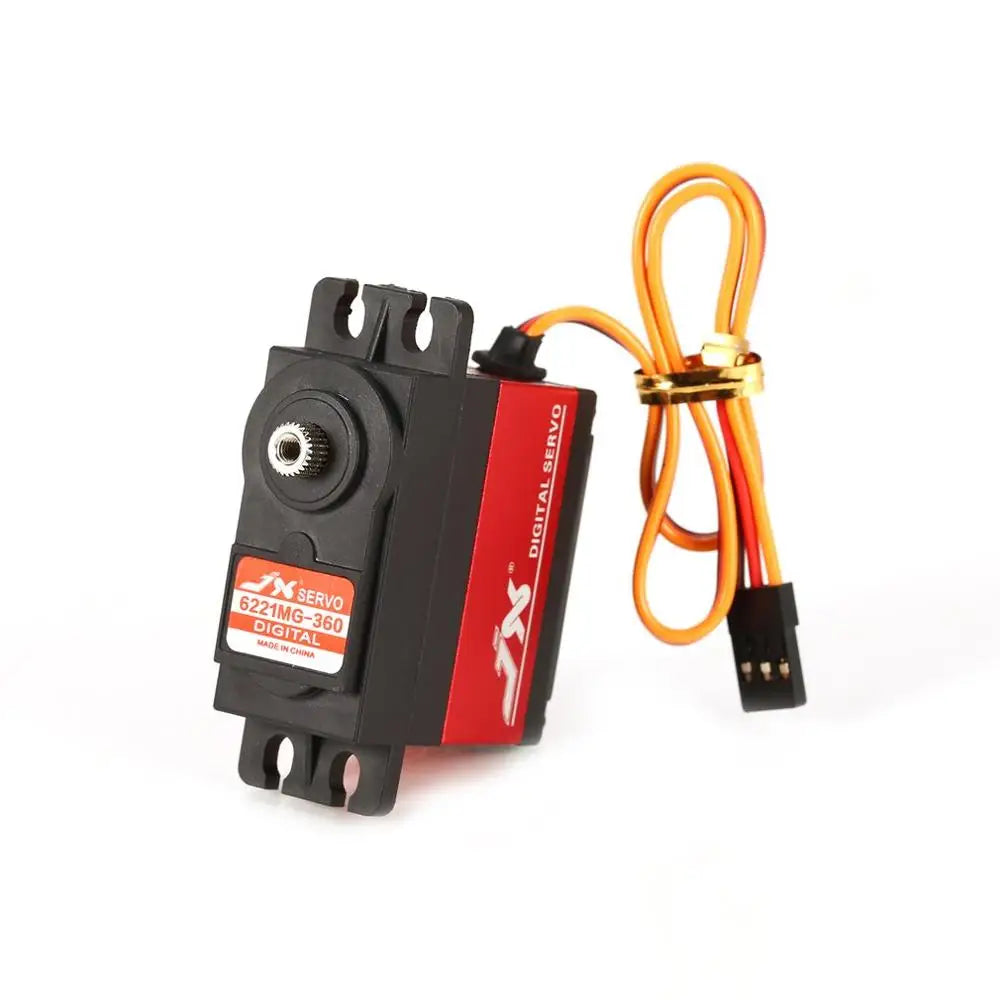

Model:PDI-6221MG-360

Dead band: 2μs

Working frequence: 1520μs / 330hz

Operating Speed (4.8V): 0.09 sec/60°

Operating Speed (6V): 0.07 sec/60°

Stall Torque (4.8V): 6.8 kg/cm

Stall Torque (6V): 8.2 kg/cm

Dimensions: 40.5X20.2X38mm

Metal Teeth:25T

Control Angel:120 Degree

Weight: 62 g

Connector Wire Length: JR 265 mm

Wire/Color:JR 265 mm/ -Brown +Red S Orange

Bearing: 2BB

Use: Vehicles & Remote Control Toys

Rc parts & accs: Servos

For vehicle type: Cars

Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
