MAD 4014 IPE Tethered Drone Motor - KV370 KV400 KV450 6S Brushless Quadcopter Motor For Long Endurance 4KG Quadcopter 6KG Hexcopter 8KG Octcopter
MAD 4014 IPE Tethered Drone Motor SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
Size: 110*110*50mm
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: RoHS
Upgrade Parts/Accessories: Lithium Battery
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: MAD 4014 IPE
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
MAD 4014 Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 4014 IPE V1.0 | Number of pole pairs | 7 |
| Stator | Japan / Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.9 × 31.7mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 18# 600mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4. D:32 M2.5×3 |
| Bearing | EZO 685ZZ | Disruptive test | 500 V |
| Additional Accessories | Prop Adapter *2. Propeller Plate *2. M6 Bullet *2. Prop Adapter *2. Ø4-6 Adapter Ring *2. 3.5mm Bullet Connector *6. Heat Shrinkable Tube 6. M38mm 8 Motor Screws. M36mm 8 Prop Adapter Fixing Screws. M310mm *4 Propeller Screws. Sticker *2 |
MAD 4014 Specifications
| Specifications | |||
|---|---|---|---|
| RPM/V | 370KV | Nominal Voltage | 6S lipo battery |
| No Load Current | 0.91A / 20V | Internal resistance | 116.8mΩ |
| Motor Weight | 166 g | Product Boxed Weight | 569g (110 x 110 x 55 mm) 2pcs/box |
| Maximum Current | 21.4 A | Maximum Power | 507W |
| Maximum thrust | 3.1 kg | Maximum Torque | 0.636 Nm |
| Recommended ESC | MAD AMPX PRO 40A (2~6S) | Recommended Propellers | 15x5.0. 16x5.4. 17x5.8 |
| UAV take-off weight | 6S-16"/4.4kg--Quadcopter | ||
| 6.5kg--Hexacopter | |||
| 8.5kg--Octocopter | |||
| Single rotor take-off weight | 0.75kg ~ 1.1kg |
Product Description
MAD 4014 IPE DRONE ELECTRIC MOTOR FOR THE AERIAL PHOTOGRAPHY.MAPPING DRONES.MAD 4014 Industry Professional Edition is designed to carry payloads of 1kg-1.5kg per rotor.with fluxer 15*5in.16*5.4in.17*5.8in.support 4-6S.INDUSTRY PROFESSIONAL EDITION for maintaining the highest possible performance.
* Propeller installation compatibility
* Reduced motor weight
* Motor mounting holes standarization
Motor Test Benchmarks
Company Profile
FAQ
Certifications

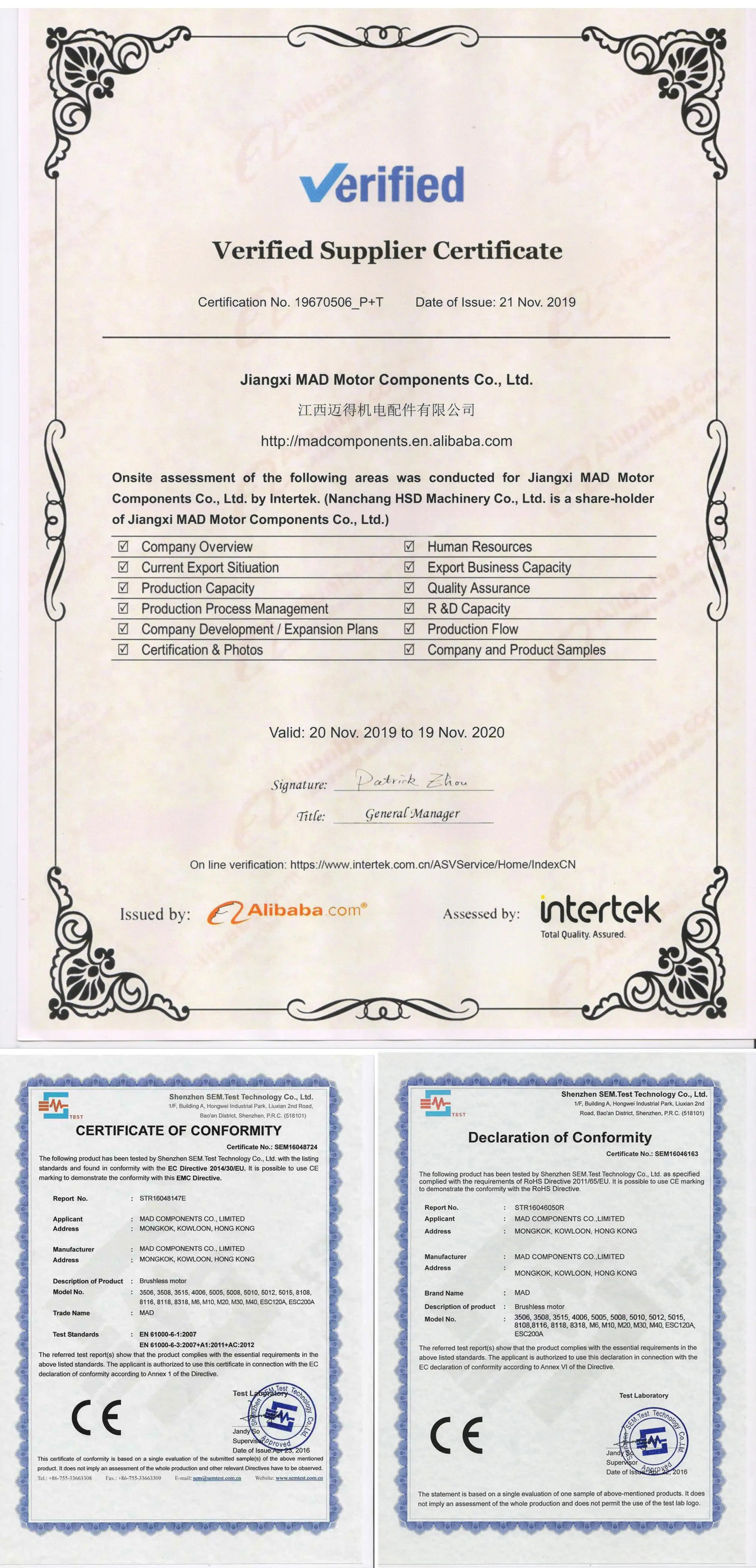

Verified Supplier Certificate Certification No. 19670506 was issued by Jiangxi MAD Motor Components Ltd on November 21st. 2019. The certificate verifies the company's compliance with various standards. including EC Directive 2014/30/EU and RoHS Directive 2011/65/EU. The product tested was a Brushless motor. Model No. 3506. 3508. 3515. 4006. 5005. 5008. 5010. 5012. 5015. 8108. 8116. 8118. 8318. M6. M10. M20. M30. M40. ESC1ZOA. and ESCZOOA. The certificate is valid from November 20th. 2019 to November 19th. 2020.
| Color |
370KV-1PC, 370KV-2PCS, 400KV-1PC, 400KV-2PCS |
|---|
