MAD Antimatter M6C08 EEE Drone Motor - KV130 KV180 KV260 KV320 High Temperature Brushless Motor for Long Flight Drone
MAD M6C08 EEE Drone Motor Overview
The MAD M6C08 EEE V2.0 drone motor is a high-performance motor designed for demanding UAV applications. Manufactured with anticorrosive stator from Taiwan and providing rain protection. it ensures durability and reliability. It features centrifugal heat dissipation and offers various RPM/V ratings (130 KV. 180 KV. 260 KV. and 320 KV) to suit different flight requirements. The motor supports 6-12S lipo batteries. delivers maximum power ranging from 980W to 1602.2W. and achieves a thrust up to 7.6kg. Compatible with a range of propellers and ESCs. it is ideal for use in quadcopters. hexacopters. and octocopters for tasks such as inspection. mapping. and surveying.
MAD M6C08 EEE Drone Motor Specifications
Motor Data
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| Motor Model | MAD M6C08 EEE V2.0 | Number of pole pairs | 14 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 29.4 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4. D:18 M3×4. D:22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4. D:32 M4×4 |
| Bearing | EZO 696ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | M6 Prop Adapter 1. M6 Propeller Plate 1. Ø4-6 Adapter Ring 1. 3.5mm Bullet Connector3. Heat Shrinkable Tube3. M38mm 4 Motor Screws. M48mm 4 Motor Screws. M36mm 4 Prop Adapter Fixing Screws. M312mm 2 Propeller Screws. Sticker1 |
MAD M6C08 130V Specifications
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| RPM/V | 130 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 0.38A / 20V | Internal resistance | 238mΩ |
| Motor Weight | 188 g | Product Boxed Weight | 358g (110 x 110 x 55 mm) |
| Maximum Current | 20.1 A | Maximum Power | 980 W |
| Maximum thrust | 5.9 kg | Maximum Torque | 1.65 Nm |
| Recommended ESC | MAD AMPX 40A (5-14S) HV | Recommended Propellers | 21x6.3. 22x6.6. 22x7.0. 22.1x7.4. 24x7.2 |
| UAV take-off weight | 12S-22" 7kg--Quadcopter | Single rotor take-off weight | 2kg ~ 2.5kg |
| 10.5kg--Hexacopter | |||
| 14kg--Octocopter |
MAD M6C08 180V Specifications
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| RPM/V | 180 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 0.51A / 20V | Internal resistance | 119mΩ |
| Motor Weight | 180 g | Product Boxed Weight | 350g (110 x 110 x 55 mm) |
| Maximum Current | 34 A | Maximum Power | 1485 W |
| Maximum thrust | 7.1 kg | Maximum Torque | 1.99 Nm |
| Recommended ESC | MAD AMPX 40A (5-14S) HV | Recommended Propellers | 20x6.0. 21x6.3. 22x6.6. 22x7.0 |
| UAV take-off weight | 12S-22" 11kg--Quadcopter | Single rotor take-off weight | 2kg ~ 3kg |
| 16.5kg--Hexacopter | |||
| 22kg--Octocopter |
MAD M6C08 260V Specifications
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| RPM/V | 260 KV | Nominal Voltage | 6-8S lipo battery |
| No Load Current | 1.04A / 20V | Internal resistance | 57mΩ |
| Motor Weight | 185 g | Product Boxed Weight | 355g (110 x 110 x 55 mm) |
| Maximum Current | 50.7 A | Maximum Power | 1602.2 W |
| Maximum thrust | 7.6 kg | Maximum Torque | 1.96 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 21x6.3. 22x6.6. 22.1x7.4. 24x7.2 |
| UAV take-off weight | 6S-22" 7kg--Quadcopter | Single rotor take-off weight | 3kg ~ 4kg |
| 10.5kg--Hexacopter | |||
| 14kg--Octocopter |
MAD M6C08 320V Specifications
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| RPM/V | 320 KV | Nominal Voltage | 6S lipo battery |
| No Load Current | 1.37A / 20V | Internal resistance | 37mΩ |
| Motor Weight | 179 g | Product Boxed Weight | 349g (110 x 110 x 55 mm) |
| Maximum Current | 63.4 A | Maximum Power | 1494.5 W |
| Maximum thrust | 6.9 kg | Maximum Torque | 1.91 Nm |
| Recommended ESC | XROTOR Pro 60A (4-6S) | Recommended Propellers | 21x6.3. 22x6.6. 22.1x7.4. 24x7.2 |
| UAV take-off weight | 6S-22" 9kg--Quadcopter | Single rotor take-off weight | 2.5kg ~ 3.5kg |
| 13.5kg--Hexacopter | |||
| 18kg--Octocopter |
MAD M6C08 Description
Our brand MAD M6C08 EEE Antimatter motors is defined as not “ordinary” in the multi-rotor motors field. We are proud to release antimatter series motors (M6C06. M6C08. M6C10. M6C12) at the end of 2019. We spent one year to design and prove which drone motors are the most efficient with 21-24in props. This is the magic! MAD Components in Poland brings to the table.The main feature of MAD M6C08 EEE is provides much longer flight times with 22”-24” CF prop drones. It is for unmanned vehicle aerial system (UAS. UAV. RPAS or drone). The main feature of MAD M6C08 EEE is provides much longer
flight times with 22”-24” CF prop drones.
* Open body design for better passive heat dissipation.
* Propeller installation compatibility.
* Reduced motor weight.
* Motor mounting holes standarization.
* Airy case design
Motor Test Benchmarks

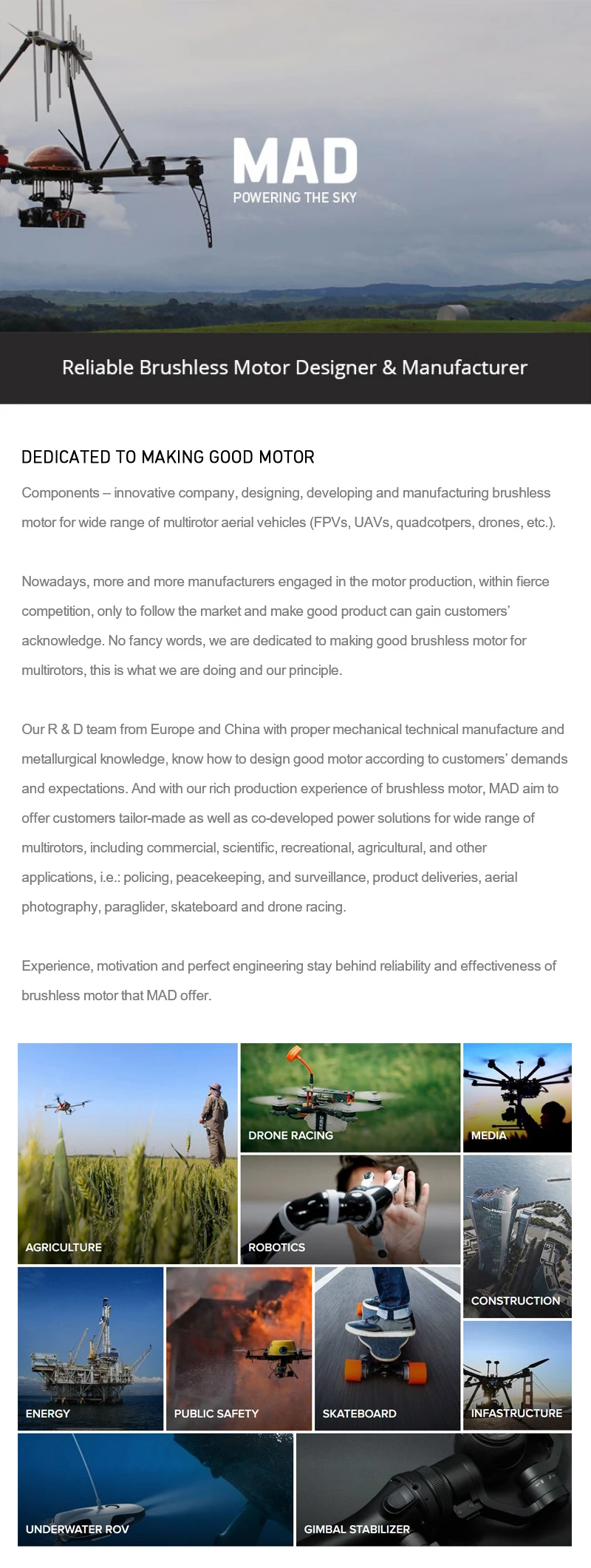

Company Profile

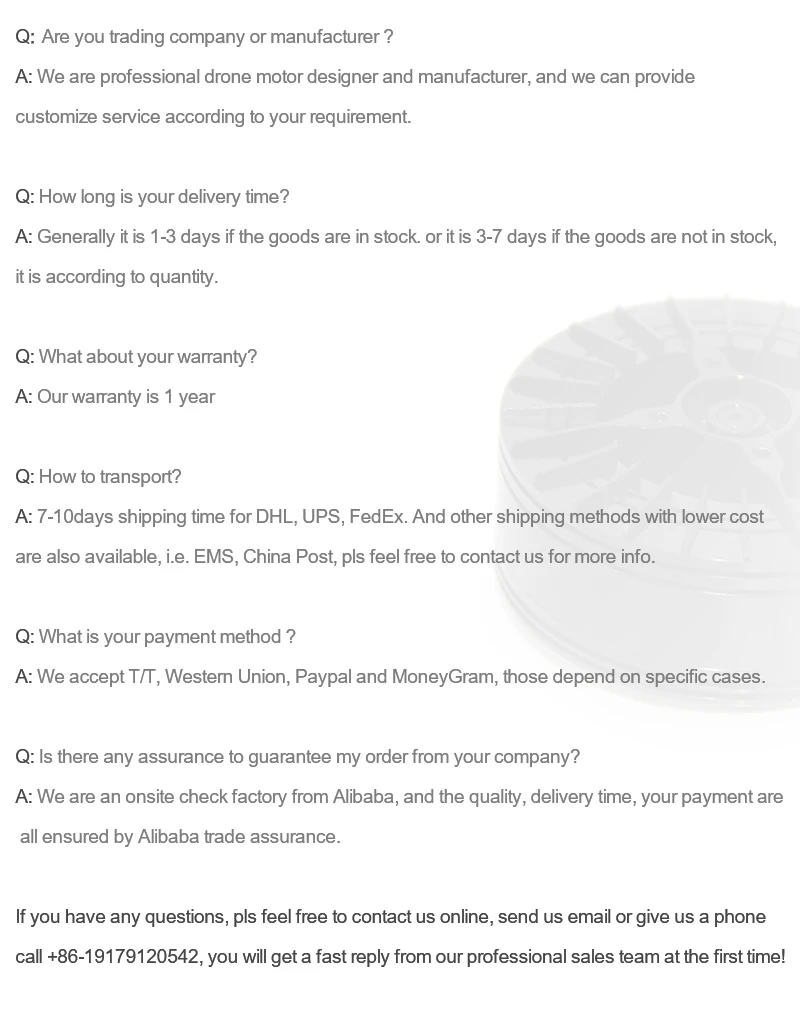

FAQ
