MAD BSC3115 FPV Drone Motor SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

Size: 33.6*48.9 mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Model Number: BSC 3115

The BSC series FPV brushless motor is our entry-level model. designed to meet the needs of a wide range of customers. It offers an optimal balance between cost effectiveness and uncompromising quality. making it equally suitable for beginners and experienced enthusiasts.
If you are looking for a more durable and aesthetically pleasing motor of the same type. you can choose our FS series.

The MAD BSC3115 FPV Drone Motor is an excellent choice for beginners. offering outstanding performance and design. Suitable for long-range navigation applications on quadcopters up to 11 inches in length. this motor provides reliable power for various FPV (first-person view) projects.

Excellent cost-performance ratio. delivering high-quality performance. this top-of-the-line motor system features 490KV. 900KV. and 1050KV options from MAD Components for long-range propulsion in quadcopter drones.

Featuring an advanced shock-absorbing design. this motor optimizes bearing life and reduces vibration. providing an enhanced user experience. Built with cutting-edge technology. our innovative approach continually pushes boundaries to deliver outstanding performance.

Featuring high slot fill rate for efficient power delivery and rapid response. this motor uses military-grade oxygen-free single-crystal copper wire for enhanced stability under extreme conditions.

Featuring an Arc-Shaped Magnet design. this motor's N52H magnetic material enhances remanence and coercivity. providing a powerful surge.

MAD Motor manufactures its products according to the highest quality standards. ensuring that each motor delivers exceptional performance. Our BSC3115 series features three brushless motor options: 490KV. 900KV. and 1050KV. These motors are designed for quadcopter drones and come in two configurations: 6S or 12S. The BAOGER label ensures the highest level of quality control.

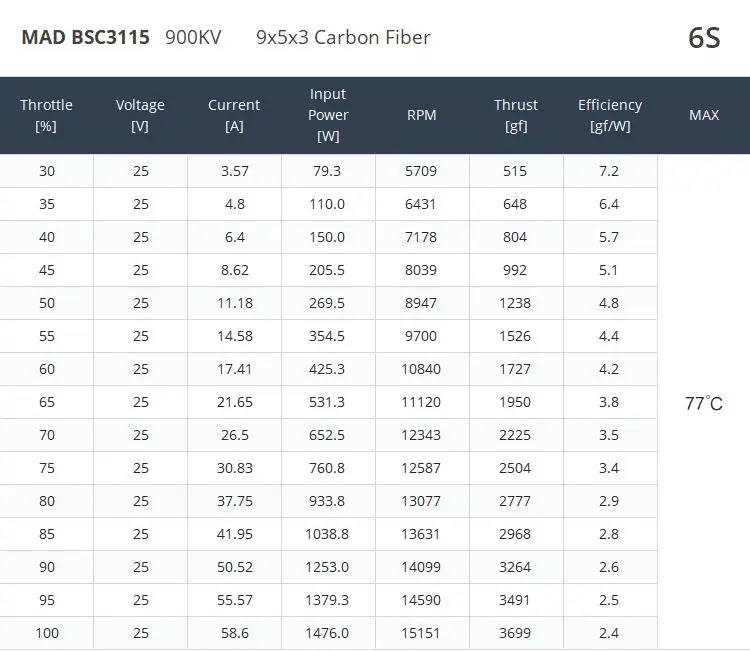

Product specifications include: RPM (900kV). no-load current (1.45A @ 10V). maximum current (63.8A). motor weight (113g). internal resistance (35.8mΩ). maximum thrust (3.9kgf). and maximum power (1532.9W). Boxed product weight: 126.8g.

Contains: one MAD MS nut. four brass gaskets. one 0-ring. six counter-sunk screws. and a sticker. The package includes these components for assembling the MAD BSC3115 FPV drone motor.
