Mayatech 1258TG V3 20KG Servo - Waterproof and High Torque Metal Tooth Actuator Digital steering gear servo can to parabolic 1268SG

Large torque metal teeth

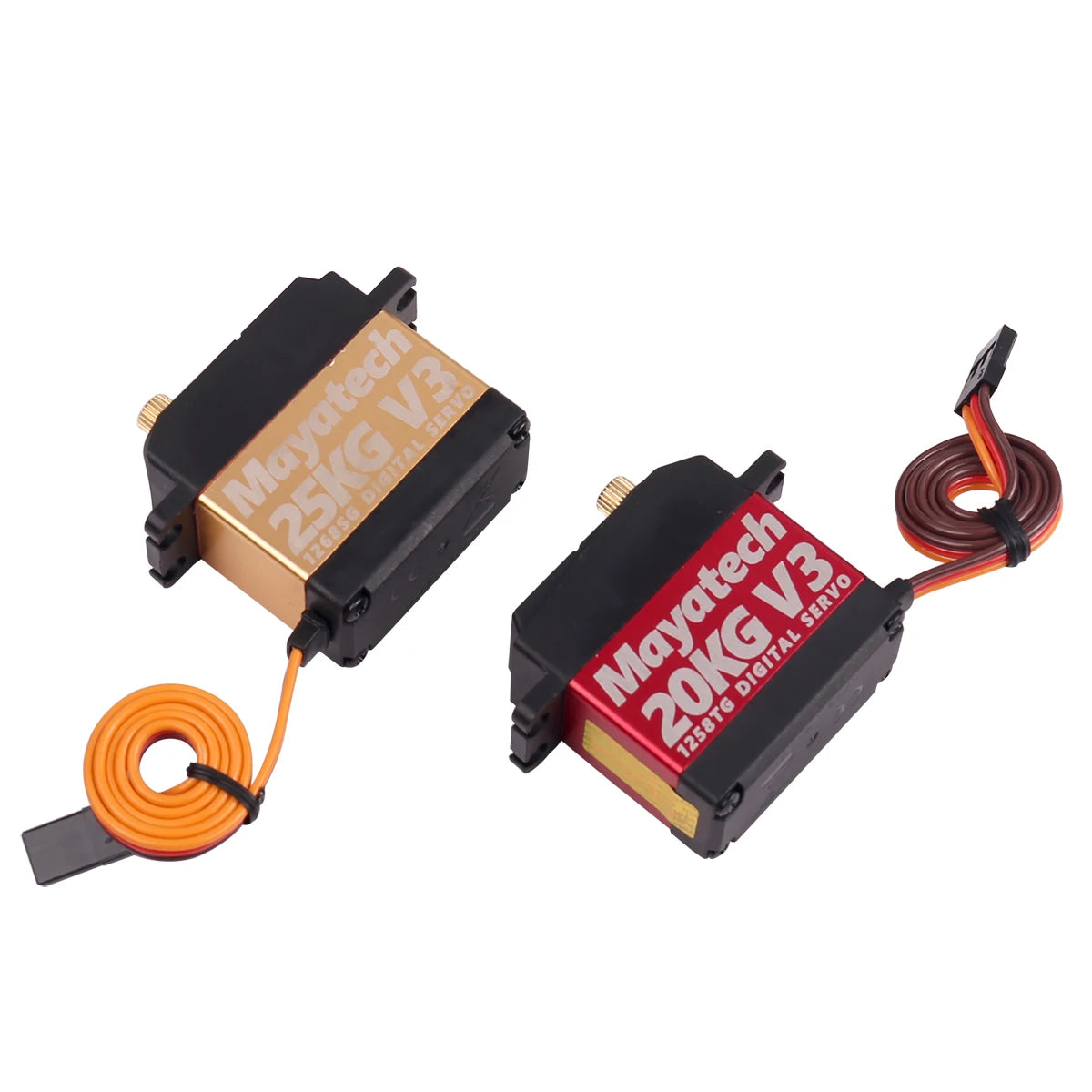

Mayatech 1258TG V3 Servo

20kg / 25kg large torque. all metal copper teeth. double bearing. high precision. low noise. large angle. stable performance

Mayatech's V3 servo features a digital steering gear and waterproof design. with a high torque metal tooth actuator suitable for parabolic systems.

Imported chip

Fast response. no rudder shaking. fast output. digital mode. fast boring speed. safe and stable. so that you can play your stunts freely

Mayatech 1258TG V3 Digital Servo. waterproof. high-torque metal tooth actuator. suitable for parabolic systems and compatible with Mayatech's 1268SG steering gear.

IP86 Waterproof

All holes are equipped with waterproof gaskets. so that you can wade without worry (It can prevent splashing and cannot be immersed in water for a long time)

Mayatech's waterproof servo features three sealing rubber rings. tested to IP86 standards. ensuring reliable performance even in wet conditions.

Metal middle shell

CNC aluminum alloy middle shell. high strength. corrosion resistance and durability

Mayatech 1258TG V3 Waterproof Digital Steering Gear Servo with High Torque and Metal Tooth Actuator. compatible with parabolic 1268SG.

Silicone steering gear line

JR plug. strong adaptability. corrosion-resistant silicone wire. 265mm wire length

Accessories: rudder arm complete

Including steering gear accessories package. straight. half. cross. * type. disc and related screws

Size introduction

Mayatech's 1258TG V3 servo features a waterproof design. high torque metal tooth actuator. and digital steering gear for use with parabolic systems like the 1268SG.

Mayatech's 1258TG V3 servo features waterproof design. 20KG metal tooth actuator. and high torque. With a weight of 68g and 2BB bearing. this digital steering gear servo is suitable for parabolic systems like the 1268SG.

Angle range: actual angle 120 ± 2 °. about 60 degrees

Gear: titanium steel teeth

Speed (4.8V): 0.13 sec / 60 °

Speed (6V): 0.11 sec / 60 °

Torque (4.8V): 17.25 kg cm (239.55oz/in)

Torque (6V): 20.32 kg cm (281.89 oz / in)

Size: 40.5x20.2x38mm / (standard size)

Weight: 65 g (2.18oz)

Connecting wire: JR plug (Futaba universal) 265 mm (10.43 in)

Bearing: 2BB tooth joint part is provided with bearing. and the operation is smooth without jamming

Output tooth: 25T (Futaba general)

Including steering gear accessories package. straight. half. cross. * type. disc and related screws

Total weight of metal package: 139g

Note:pulse width range: 500 μ s-2500 μ S (suitable for remote control and microcontroller control) dead zone: 2 μ s

Mayatech's 1268SG V3 servo features waterproof design. high torque metal tooth actuator. and digital steering gear. It has a weight of 68g. torsion of 25KG. and bearing of 2BB. The output tooth count is 25T (Futaba currency) with pulse range of 500-2500us.

Angle range: actual angle 120 ± 2 °. about 60 degrees

Gear: metal copper teeth

Speed (4.8V): 0.13 sec / 60 °

Speed (6V): 0.11 sec / 60 °

Torque (4.8V): 19.9 kg cm (239.55oz/in)

Torque (6V): 25.32 kg cm (281.89 oz / in)

Size: 40.5x20.2x38mm / (standard size)

Weight: 68g (2.18oz)

Connecting wire: JR plug (Futaba universal) 265 mm (10.43 in)

Bearing: 2BB tooth joint part is provided with bearing. and the operation is smooth without jamming

Output tooth: 25t (Futaba general)

Including steering gear accessories package. straight. half. cross. * type. disc and related screws

Total weight of metal package: 139g

Note:pulse width range: 500 μ s-2500 μ S (suitable for remote control and microcontroller control) dead zone: 2 μ s

Product display:

Mayatech 1258TG V3 digital servo features waterproof and high torque metal tooth actuator. compatible with parabolic gear systems.

Mayatech's 1258TG V3 Digital Steering Gear Servo features high torque and waterproof design. making it suitable for various applications including parabolic systems. The servo has a metal tooth actuator and can be used as a replacement or upgrade for the 1268SG model.

MayaTech 1258TG V3 digital servo features waterproof design. high torque metal tooth actuator. and digital steering gear for precise control. Compatible with parabolic systems like the 1268SG.

Mayatech's waterproof digital servo. model 1258TG-V3. features a high-torque metal tooth actuator and digital steering gear. suitable for parabolic applications.

Metal shell packaging:

Mayatech's 20KG V3 1258TG digital servo features waterproof and high-torque metal tooth actuator. ideal for parabolic applications.

Mayatech 1258TG V3 20KG Servo - Waterproof and High Torque Metal Tooth Actuator Digital Steering Gear Servo for Parabolic Applications.

Mayatech's 20KG VB digital servo with high torque and waterproof design. suitable for parabolic systems.

Mayatech's 1258TG V3 servo is a waterproof and high-torque digital steering gear. featuring a metal tooth actuator for precise control. Compatible with the 1268SG parabolic system.

Mayatech 1258TG V3 Waterproof Digital Steering Gear Servo. High Torque Metal Tooth Actuator. compatible with Mayatech 1268SG and other models.

Fast reaction speed and large torque. can be applied to helicopters. fixed wings. vehicle and ship models and robots. It is an all-round steering gear. widely recommended by model friends!

Universal fit for model cars. climbing cars. trucks. and more.

High-torque digital steering gear servo with waterproof metal tooth actuator. suitable for electric helicopters. model airplanes and ships. featuring robust design and reliable performance.

Mayatech's 1258TG V3 servo features a waterproof design. high torque metal tooth actuator. and digital steering gear for precise robotic arm control.

Difference between digital (digital) steering gear and analog steering gear

Digital servo and analog servo are identical in basic mechanical structure. mainly composed of motor. reduction gear and control circuit. The biggest difference between digital servo and analog servo is reflected in the control circuit. The control circuit of digital servo is more microprocessor and crystal oscillator than that of analog servo. Don't underestimate this change. it has a decisive impact on improving the performance of the steering gear.

Digital steering gear is different from analog steering gear in the following two points:

The method of processing the input signal of the receiver;

The way to control the initial current of the steering gear motor reduces the non reaction area (the control area that does not respond to small amount of signals). increases the resolution and generates greater fixed force.

When the simulated steering gear is unloaded. no power is transmitted to the steering gear motor. When there is a signal input to move the steering gear. or when the rocker arm of the steering gear receives an external force. the steering gear will react and transmit power (voltage) to the steering gear motor. This power is actually transmitted 50 times per second. modulated into the maximum voltage of the on / off pulse. and generates small segments of power. When the width of each pulse is increased. for example. the efficiency of the electronic transmission will appear until the maximum power / voltage is transmitted to the motor. and the motor rotates to point the steering gear rocker arm to a new position. Then. when the potentiometer of the steering gear tells the electronic part that it has reached the specified position. the power pulse will reduce the pulse width and slow down the motor. Until there is no power input. the motor stops completely.

The "disadvantage" of simulating the steering gear is that assuming a short power pulse followed by a long pause. it can not apply much excitation to the motor to make it rotate. This means that if there is a small control action. the steering gear will send a small initial pulse to the motor. which is very inefficient. This is also why there is a "no reaction zone" in the simulated steering gear. For example. the steering gear is very slow to respond to the small movements of the transmitter. or there is no response at all.

Compared with the traditional analog steering gear. the digital steering gear has two advantages:

Because of the microprocessor. the digital steering gear can process the input signal according to the set parameters before sending the power pulse to the steering gear motor. This means that the width of the power pulse. that is. the power of the excitation motor. can be adjusted according to the program calculation of the microprocessor to adapt to different functional requirements and optimize the performance of the steering gear.

The digital servo sends power pulses to the motor at a much higher frequency. That is. compared with the traditional 50 pulses / second. it is now 300 pulses / second. Although the width of each power pulse is reduced due to the high frequency. the motor receives more excitation signals at the same time and rotates faster. This also means that not only the servo motor responds to the signal of the transmitter at a higher frequency. but also the "no response zone" becomes smaller; The reaction becomes faster; Faster and softer acceleration and deceleration; Digital steering gear provides higher accuracy and better fixed force.
