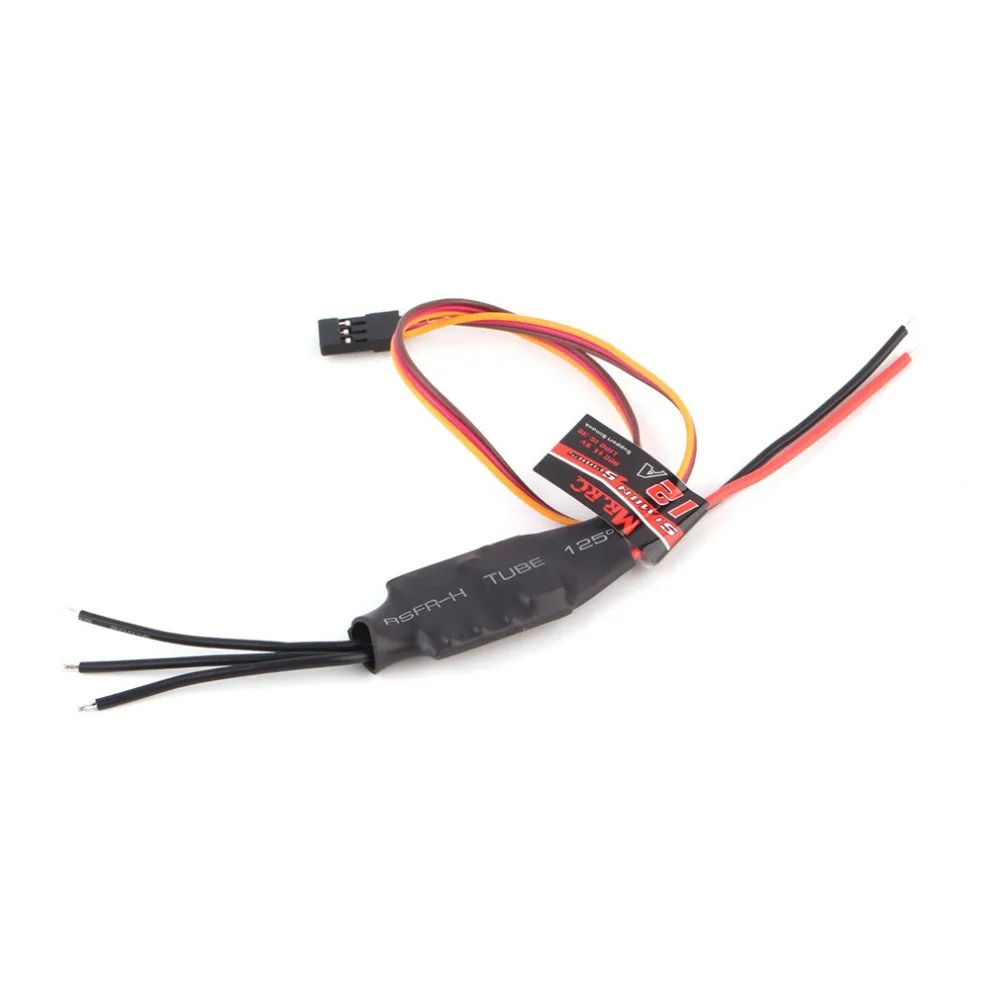

MR.RC 12A Speed Controller - ESC with SimonK Firmware For FPV QAV250 RC Airplanes Quadcopter Low-Voltage & Over-Heat Protection
SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Others
Unit Type: piece
Tool Supplies: Assembled class
Technical parameters: Value 2
Size: (L*W*H): 25mm x 20mm x 7mm
Remote Control Peripherals/Devices: Others
Recommend Age: 12+y
RC Parts & Accs: Speed Controllers
Package Weight: 0.018kg (0.04lb.)
Package Size: 20cm x 21cm x 24cm (7.87in x 8.27in x 9.45in)
Origin: Mainland China
Model Number: VZFW0814
Material: Rubber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
ESC Speed Controler: For RC FPV Quadcopter RC Airplanes Helicopter
Brand Name: QYWWRC
MR.RC 12A Speed Controller ESC with SimonK Firmware For FPV QAV250 RC Airplanes Quadcopter Low-Voltage & Over-Heat Protection
Features:
100% Brand New. Emax Original Product
Based on Simon K firmware. further optimized to the perfect drive performance.
Low-voltage protection. over-heat protection and self-check functions.
Separate power supply for MCU and BEC. enhancing the ESC\'s ability of eliminating magnetic interference.
Parameters of the ESC can be set via transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in linear BEC or switch BEC.
Max speed: 210.000 rpm for 2-pole. 70.000 rpm for 6-pole. 35.000 rpm for 12-pole.
Specifications:
Continuous Current: 12A
Burst current (10S): 15A
Li-xx Battery (cell): 2-3
Dimension (L*W*H): 25mm x 20mm x 7mm
Weight wires Included: 9
BEC Mode: Linear
BEC Output: 1A/5V
Programmable: Yes
Net Weight: 7g(approx.)
Package Includes
1 x Simonk-12A ESC
'
