Pandarc VT5804M L1 VTX - 5.8G Interface Controller 25/100/200/400/600MW VTX Buzzer LED Controller Forrc FPV Racing Drones

$30.17

Color: blackgoldred

blackgoldred
Add to Wishlist
SKU: 1005006517983774-blackgoldred
Availability: In Stock Pre order Out of stock
Categories: FPV
Description

Pandarc VT5804M L1 VTX  SPECIFICATIONS

Brand Name: PandaRC

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

Certification: none



aeProduct.getSubject()

Input Voltage : 6~ 36V;
PandaRC VT 5804 ML1 VTX 600mW/4 in 1 (VTX +LEDbars+ Buzzer t MIC) mmcx;
Frequency: 5.8Ghz 40CH . including A/B/E/F/R groups .R group is the race band
Output power : PIT/25mW/100mW/200mW/400mW/600mWConnect :MMCx ;Video Format : NTSC/PAL ;
Radio Frequency Output Impedance: 75 Ohm ;

Power consumption : 3.5W@600mW
Smart Audio : IRC-Tramp ;
LED controller specification
Each Drone arm can hold Max 8 Leds ;
16 Leds states can be controlled by one button ;
Default : closed(Each Drone Arm led can be controlled by FC). Build in Buzzer (85dB)
Build in Microphone
Colour:black+gold+red
Material:Metal+Electronic Components+ABS

Package Contents:
1 * interface controller
1 set * accessories package

Only the above package content. other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.



aeProduct.getSubject()

Pandarc VT5804M L1 VTX. PandaKc WsgoqlI 6.86 VTXBLED controller&Bu

S SQ ng PandaKc WsgoqlI 6.86 VTXBLED controller&Buzzer&MIC 4 IN 1 Video transmission module O0L 33233 00L 60Omw 40

Pandarc VT5804M L1 VTX 600mW/4 in 1

Pandarc VT5804M L1 VTX. Pandarc VT5804M L

long press the button for 2 seconds and then short press to change channel band FR (A-r) ; 3) : Select power . long press button for 6 seconds and short press . to change the power: FR CH CH CH .

Pandarc VT5804M L1 VTX. Instruction A Led bar connector Head 100 Wbossw Jycpu

Instruction A Led bar connector Head 100 Wbossw Jycpued_ Ledbar Connector 2 I82 100 aa 3inR43r7ngr48/on0o)

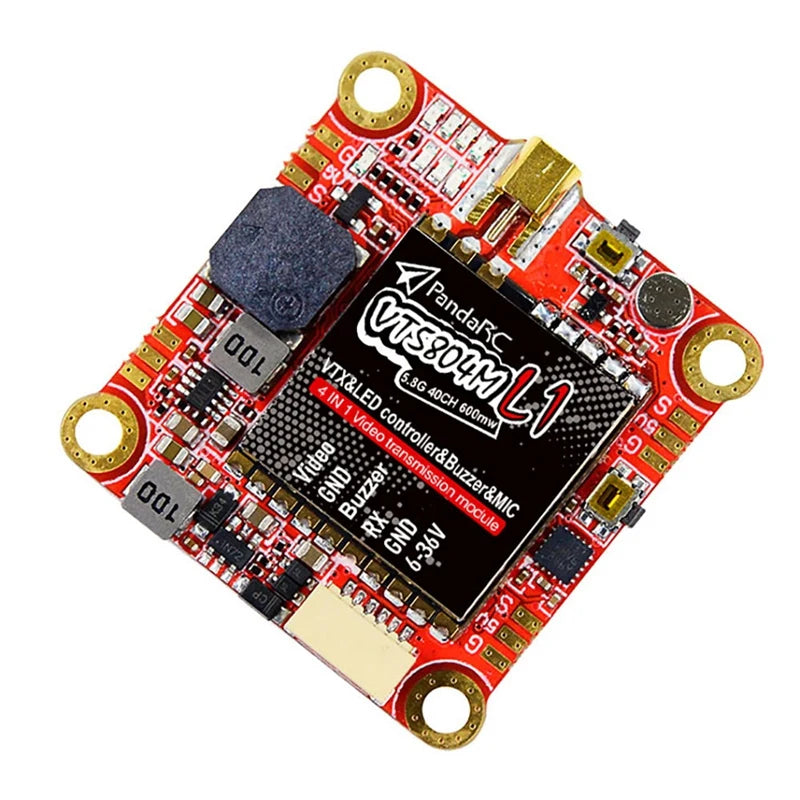

Pandarc VT5804M L1 VTX. Led Bar Connector MMC Installation hole spacing ViXbutton Frequency Indic

Led Bar Connector MMC Installation hole spacing ViXbutton Frequency Indicator Light Mictophone Mountnghole Ledbar Button Buzzer 30Smm MMILED tobolttoBat MauEo cod tollB .

Pandarc VT5804M L1 VTX. VIXBLED € JaocH L 6o0mw controller8Bu

VIXBLED € JaocH L 6o0mw controller8Buzzer&MIC Video transmission Video: 1 3 00L mocule 3D .



aeProduct.getSubject()

Payment VISA Master cardy Webloney WESTERM Maestro UMON Qiwi MONEY TRANSFER . Payment must be made within days of order .



aeProduct.getSubject()




Additional Information
Color

blackgoldred
