Radiolink Mini PIX M8N GPS Flight Controller - Vibration Damping by Software Atitude Hold for RC Racer Multicopter Drone
Radiolink Mini PIX M8N GPS Flight Controller SPECIFICATIONS
Wheelbase: Upper Shell
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembly Category
Technical parameters: Value 2
Size: as the instruction
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: Mini PIX M8N GPS Flight Control
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Radiolink Mini PIX M8N GPS Flight Control Vibration Damping by Software Atitude Hold for RC Racer Multicopter Drone
Package included:
1 x Mini PIX F4 flight controller
1 x Mini M8N GPS
1 x power module
1 x buzzer
1 x power module connect cable
1 x buzzer connect cable
1 x receiver & RSSI connect cable
1 x safety switch button
Remark.
There is 3 selection.Mini PIX F4 flight controller / GPS / Flight controller with GPS.
We will ship according your choose
Description:
1. PIX F4 Flight Controller:
Processor: STM32F405VGT6
Gyroscope: MPU6500
Barometer: LPS22HB
Compass: QMC5883L
Connector: JST GH connector
Mavlink UART: 2(with CTSRTS)
Size: 39*39*12mm
Weight: 12g (without wires)
Better altitude hold
Same functions as PIXHAWK
Same size as F4
Cost-effective DIY solution
Top configuration
Vibration damping by software
Easy to control
Comprehensive technical support
2. Mini M8N GPS Module:
Size: 32*30*12mm
Weight: 20g
Positional accuracy: 50 centimeter precision when working with concurrent GNSS
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Sensitivity:
Tracking & Nav.: -167dBm. Reacquisition: -163dBm
Cold start: -151dBm. Hot start: -159dBm
Time to first fix: Cold start: 26s. Hot start: 1s
Connect ports:
Power supply: voltage 5VDC+-5%. current 50~55mA
Ports:
A. GPS UART interface
baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B. Geomagnetic I2C interface
Top configuration:
GPS decoder chip: Radiolink M8N GPS. with u-blox UBX-M8030(M8). 72-channel. is much better than single GNSS 7N.
Geomagnetic: QMC5883L which with same technology as HMC5983 form Honeywell
Antenna: 2.5dbI high gain and selectivity ceramic antenna
Double filter: SAWF(Surface acoustic wave filter) form Murata
4 Brand New Mini PIX 4 4 Vibration Damping by Software 74 Better Altitude Hold quustore better altitude hold Same Functions as F4 Cost-effective DIY Solution .
radiolink mini PIX with STM32F4OSVGT6 processor and LPS2ZHB barometer from America ST. MPU65OO accelerometer from INVENSENS. QMC5883L compass is your best choice that with top configuration and affordable price quusiOjC 87/$ % Es Top IoI0u E EEr"
the main board has air pressure vent to ensure the accuracy of the barometer testing . Radiolink mini PIX achieved better Altitude Hold effect uuustore .

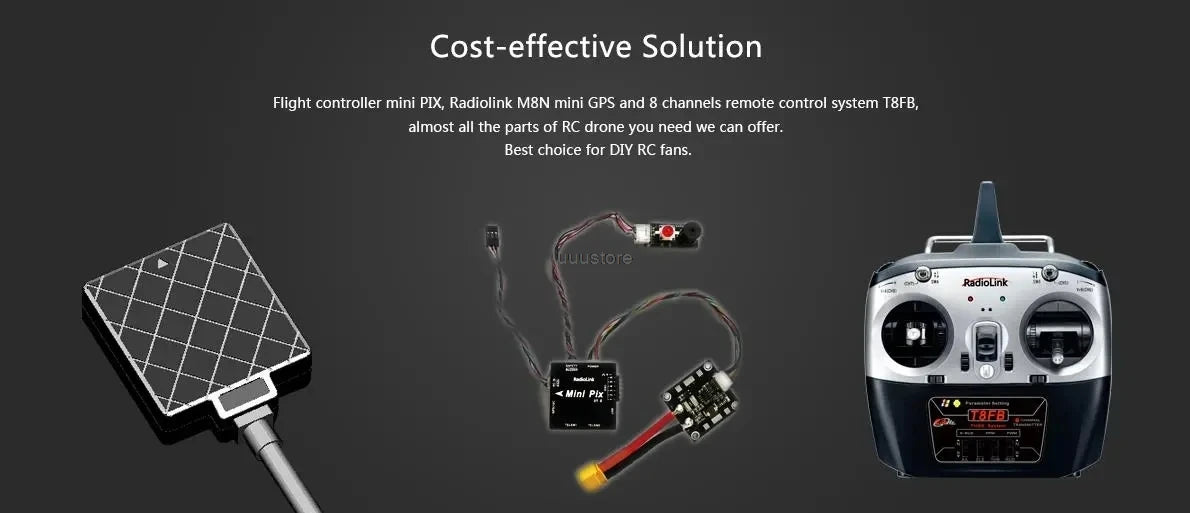

ustore RadioLink Mlni Plx LBEED is the best choice for DIY RC fans . TBFB is a 8 channel remote control system with 8 channels of remote control .
TSIOO can capture extremely weak signals even though interference by ideal filter . position accuracy of 20 satellites in 6 seconds at open ground and valley station-keeping ability.
Radiolink M8N GPS with U-blox UBX-M803O(M8). 72-channel. is much better than single GNSS 7N: Geomagnetic: QMC5883L .
Super Simple Modes TS1OO work with Radiolink mini flight controller MINI PIX Best choice for racing drone beginner .
Definition of Wire Wire Definition for MINI PIX Port Wire definition for MINI GPS Port quusiie Black wire-GND White wire-RX Yellow wire-SDA Blue wire-TX Green wire- SCL Red wire-VCC Blue wire - RX
| Color |
M8N GPS for PIX, Full Set, Mini PIX |
|---|
