Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) for 4in1 version and CC2500 Version; EdgeTX (Transmitter) / ExpressLRS (RF module) for ELRS Version
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR / FrSKY / Crossfire compatible
Upgrade Method: USB / SD card & EdgeTX Companion PC software

Package
1 * BOXER Radio

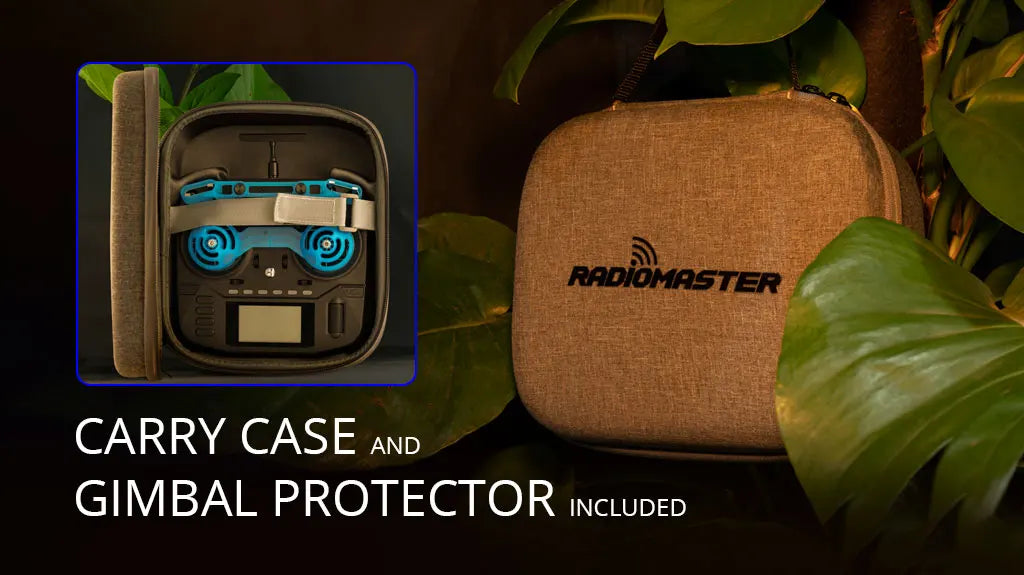

1 * Signature Carry Case
1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual
1 * 18650 Battery tray (Batteries not included)

Notes:
CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

Bncenna Type-C Data Port S2 Dlal Tralner Port Headphone Jack SE Latching swltch SA 2 Posltlon Position RanioMASTER SB 3 Positlon RBOKER Speaker 280807130 Power Button Left Gimbal Right Gimbale Lanyard Loop Pos Buttons Buttons SYS Button MDL Button RTN Button PAGE> Button oPAG PAGE Button Scroll wheel TELE Button LCD Screen

RADiOMASTER BOXER RADIO THE NEW CHAMPION COMPACT. ERGONOMIC AND POWERFUL Forer ExpressLRS 4in1 1 1 CC2500 30dBm(1W) 20dB

The RadioMaster Boxer 2.4G transmitter features ExpressLRS v3.0. which supports a 4-in-1 configuration with CC2500 technology. It has an adjustable RF output capable of up to 30 dBm/1W. with a refresh rate of up to 1000 Hz. The system is available in both ExpressLRS and 4IN versions.

RadioMaster features a standardized button layout with a versatile 6-position switch. providing easy access to flight modes.

The RadioMaster Boxer transmitter features full-sized V4.0 hall effect gimbals. offering an optional upgrade to the high-performance AGO1 or JJBR-12 SU gimbal.

The RadioMaster Boxer transmitter features an internal module cooling fan. which is only available in the ExpressLRS version. This model also includes push external power slots located inside the battery cover.

Quick Charge 3.0 technology enables fast charging. with a maximum output of 2.0 amps. Additionally. this product comes pre-loaded with an SD card slot for expanded storage capabilities.
