RCINPOWER GTS V3 1002 Brushless Motor 14000KV / 19000KV / 22000KV – 1S FPV Motor with 1.5mm Shaft for 65-75mm Whoop Drones

$73.43

Color: 4PCS 1002 22000KV

4PCS 1002 22000KV
1PC 1002 22000KV
4PCS 1002 19000KV
1PC 1002 19000KV
1PC 1002 14000KV
4PCS 1002 14000KV
Add to Wishlist
Ask a Question
SKU: 1005004561372490-4PCS 1002 22000KV
Availability: In Stock Pre order Out of stock
Categories: FPV Motor
Description

Overview

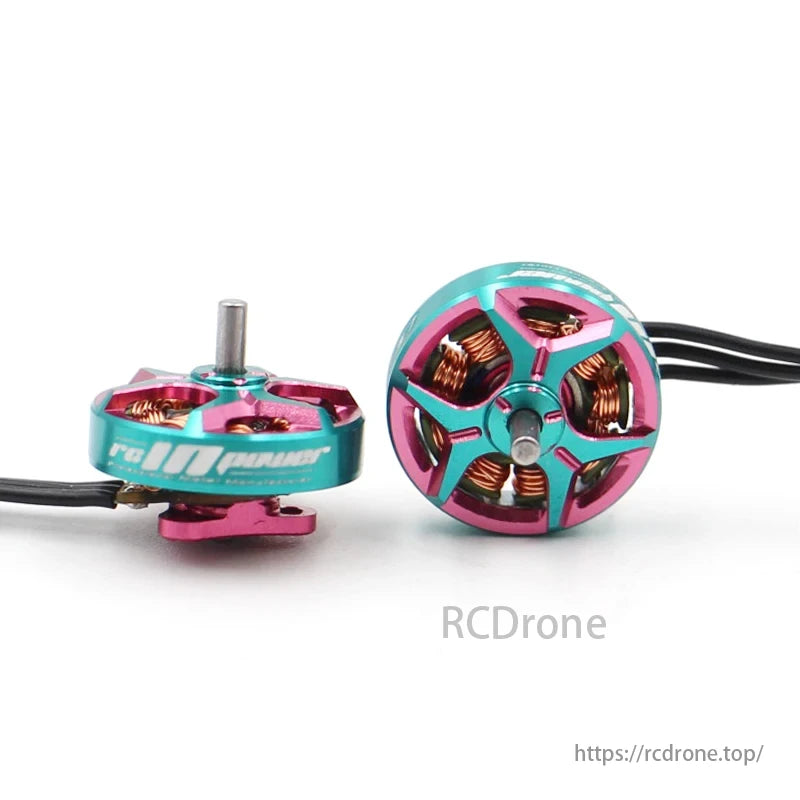

The RCINPOWER GTS V3 1002 Brushless Motor is a high-efficiency power solution for 1S micro drones. especially suited for 65–75mm whoop and toothpick builds. Available in 14000KV. 19000KV. and 22000KV options. this motor combines a 10mm stator. 1.5mm shaft. and premium CNC construction. delivering smooth. stable thrust for both analog and HD builds.

Featuring RCINPOWER's signature GTS V3 design. these motors use 9N12P configuration. dual-ball bearings. and ultra-precise balancing to reduce vibration and maximize efficiency.

Whether you're cruising indoors. flying freestyle. or pushing racing limits. the GTS V3 1002 series offers the right powerband for your setup.

⚙️ Specifications by KV

Spec 14000KV 19000KV 22000KV
Configuration 9N12P 9N12P 9N12P
Stator Size (Dia. x Len) 10mm × 2mm 10mm × 2mm 10mm × 2mm
Motor Dimensions φ13.5mm × 7.75mm φ13.5mm × 7.75mm φ13.5mm × 7.75mm
Shaft Diameter 1.5mm 1.5mm 1.5mm
Weight (with wire) 2.5g (5cm) 2.5g (5cm) 2.5g (3cm)
Idle Current @5V 0.8A 1.3A 1.5A
Internal Resistance 175mΩ 89mΩ 75mΩ
Max Continuous Power (3S) 67W 44W 52W
Max Current (3S) 9A 11.8A 14A
Max Efficiency Current 1–3A >84% 2–4A >84% 2–4A >84%
Voltage Support 1S–2S 1S 1S

🎯 Recommended Usage

  • 14000KV: Great for cinematic smooth flights and longer flight times

  • 19000KV: Ideal for balanced racing/freestyle builds

  • 22000KV: Designed for high-thrust. aggressive 1S setups

📦 Package Options

  • 1 × RCINPOWER GTS V3 1002 Motor (choose KV)

  • 4 × RCINPOWER GTS V3 1002 Motors (choose KV)

  • M1.4 × 3mm Mounting Screw Pack (included)

Color: Teal Blue + Pink anodized
Compatibility: Perfect for 65mm / 75mm 1S whoops. HDZero / Walksnail micro builds



RCINPOWER GTS V3 1002 Brushless Motor. GTS V3 1002-14000KV motor: 14.000 KV. 9N12P. 10mm stator. 2.5g. 67W. 9A. >84% efficiency. Perfect for RC models with various props and voltages.

GTS V3 1002-14000KV motor: 14.000 KV. 9N12P. 10mm stator. 2.5g weight. 67W power. 9A current. >84% efficiency. Ideal for RC models with different props and voltages.

RCINPOWER GTS V3 1002 Brushless Motor. GTS V3 motor: KV 19000. 10mm stator. 2.5g weight. 44W max power. >84% efficiency. Ideal for RC models.

GTS V3 motor specs: KV 19000. 9N12P. 10mm stator. 2mm length. 1.5mm shaft. Weighs 2.5g. 44W max power at 3S. efficiency >84%. Ideal for RC models with different props and voltages.

RCINPOWER GTS V3 1002 Brushless Motor. GTS V3 1002-22000KV motor: 22000KV. 9N12P. 10mm stator. 2.5g weight. 52W max power. >84% efficiency. up to 84°C.

GTS V3 1002-22000KV motor specs: KV 22000. 9N12P config. 10mm stator diameter. 2mm length. 1.5mm shaft. Weighs 2.5g. max power 52W at 3S. efficiency >84% at 2-4A. operates up to 84°C.

RCINPOWER GTS V3 1002 Brushless Motor. This motor comes in 3 options. combining a 10mm stator. 1.5mm shaft. and CNC construction for smooth. stable thrust.RCINPOWER GTS V3 1002 Brushless Motor. Cruising. flying. or racing. the GTS V3 1002 series provides the suitable powerband for various setups.RCINPOWER GTS V3 1002 Brushless Motor. The GTS V3 1002 series provides the right powerband for various setups.RCINPOWER GTS V3 1002 Brushless Motor. Specifications include 14000KV. 19000KV. and 22000KV with configuration 9N12P for each.
