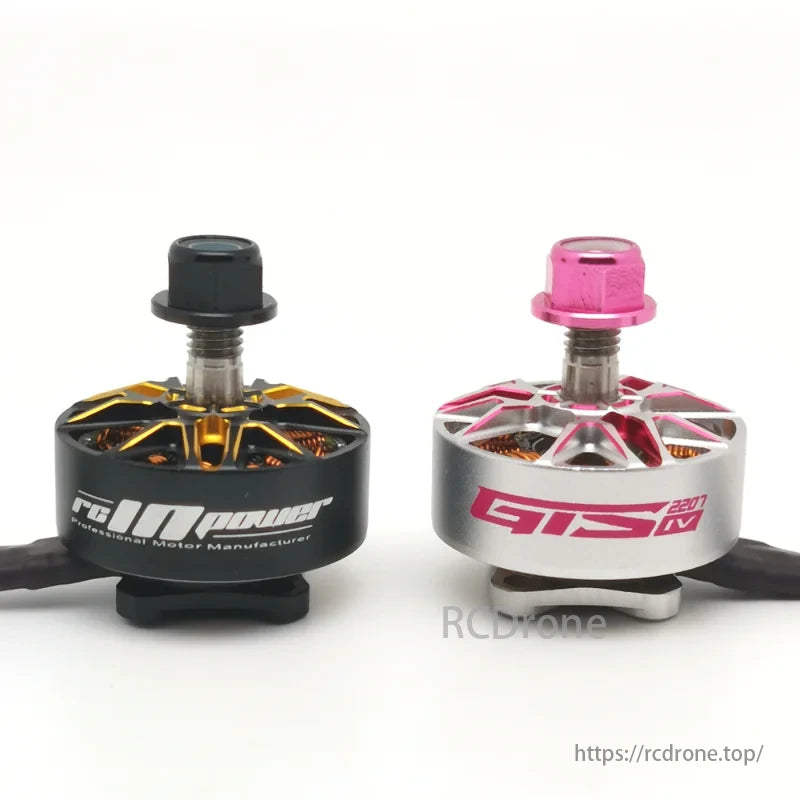

RCINPOWER GTS V4 2207 1960KV 2040KV 5–6S FPV Brushless Motor for Freestyle Racing Drones
Overview
The RCINPOWER GTS V4 2207 FPV Brushless Motor is engineered for pilots who demand explosive power and ultra-smooth throttle response for 5–6S freestyle and racing drones. Available in 1960KV and 2040KV. the GTS V4 motor combines cutting-edge performance with refined thermal management and high efficiency. supporting sustained high-throttle flying and aggressive maneuvers.
With a lightweight unibell design. hollow shaft. and premium stator build. the GTS V4 delivers reliability and performance you can trust whether you're sending a dive or ripping through a gate.
Key Specifications
| Parameter | Specification |
|---|---|
| Brand | RCINPOWER |
| Model | GTS V4 2207 |
| KV Options | 1960KV / 2040KV |
| Configuration | 12N14P |
| Stator Size | 22mm x 7mm |
| Shaft Diameter | 4mm (Hollow) |
| Motor Dimensions | Φ27.3 × 30.3mm |
| Weight | 29.9g (with 2cm wire) |
| Voltage Support | 5S–6S LiPo |
| Max Continuous Power | 1300W (2040KV @5S) |
| Max Current | 54A |
| Idle Current (10V) | 1.1A |
| Internal Resistance | 56mΩ |
| Max Efficiency Current | 7–10A @ >86% |
| Color Options | Black+Gold / Silver+Pink |
Performance (2040KV Highlights)
| Propeller | Voltage | Max Thrust | Max Power | Max Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|
| GF51466R | 24V | 2281g | 1293.6W | 4.104 @50% throttle | 85°C |
| HQ R36 | 24V | 1994g | 1161.6W | 3.532 @50% throttle | 77°C |
| HQ R38 | 24V | 2032g | 1231.2W | 3.314 @50% throttle | 81°C |
| DAL T5148.5 | 24V | 2060g | 1154.4W | 3.678 @50% throttle | 78°C |
All data measured under full load with 5S/6S and 100% throttle.
Key Features
High Burst Power: Up to 1300W continuous output with excellent cooling
Hollow Titanium Shaft: 4mm shaft ensures strength while reducing weight
Lightweight Unibell Design: Just 29.9g. designed for explosive response and smooth throttle
Premium Components: High-quality windings and arc magnets for consistent performance
Color Options: Choose from Black+Gold or Silver+Pink to match your build
Recommended Application
Freestyle FPV 5"–6" builds
High-throttle cinematic flights
Racing drones needing high top-end RPM with mid-KV range
Compatible with popular props like GF51466. HQ R38. DAL T5148.5
Package Includes
1x RCINPOWER GTS V4 2207 FPV Brushless Motor
(Choose 1960KV or 2040KV. and your preferred color)
GTS V4 2207 2040KV motor specs: KV 2040. 12N14P. 22mm stator. 7mm length. Weighs 29.9g. 1300W power. 54A current. Ideal for FPV with efficient performance metrics.
GTS V4 2207 5-6S FPV Motor. packaged with screws and accessories.
| Color |
4PCS KV2040 Silver, 1PC KV1960 Black, 1PC KV1960 Silver, 1PC KV2040 Black, 1PC KV2040 Silver, 4PCS KV1960 Black, 4PCS KV1960 Silver, 4PCS KV2040 Black |
|---|---|
| Ships From |
CHINA |
