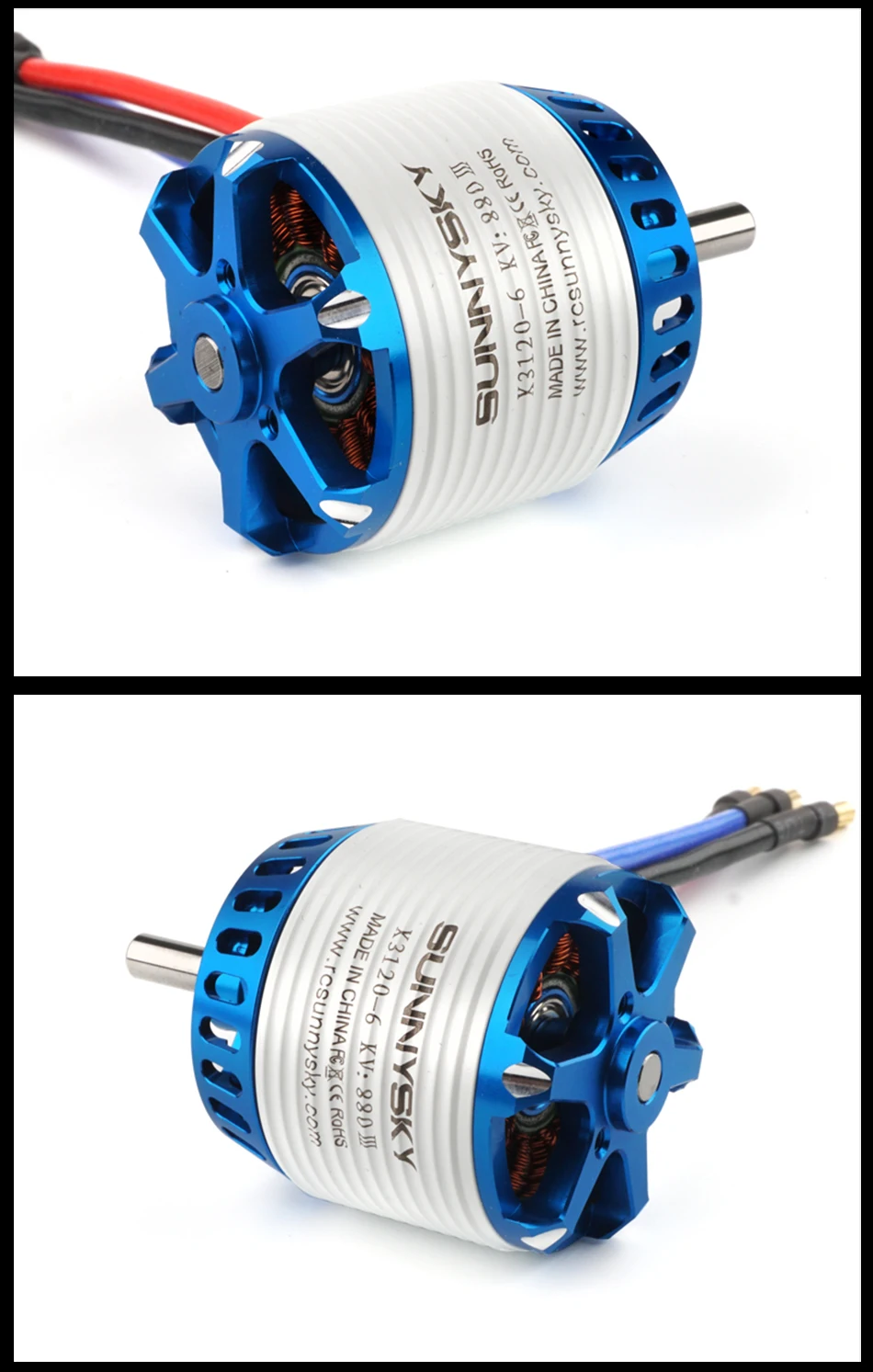

1/2/4PCS SUNNYSKY X3120-III 585KV 760KV 880KV 1025KV Brushless Motor for RC Quadcopter Airplanes Fixed Wing UAV Plane
SUNNYSKY X3120-III motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Tool Supplies: Assembled class
Technical parameters: Value 4
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: X3120
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
1/2/4PCS SUNNYSKY X3120-III 585KV 760KV 880KV 1025KV Brushless Motor for RC Quadcopter Airplanes Fixed Wing UAV Plane

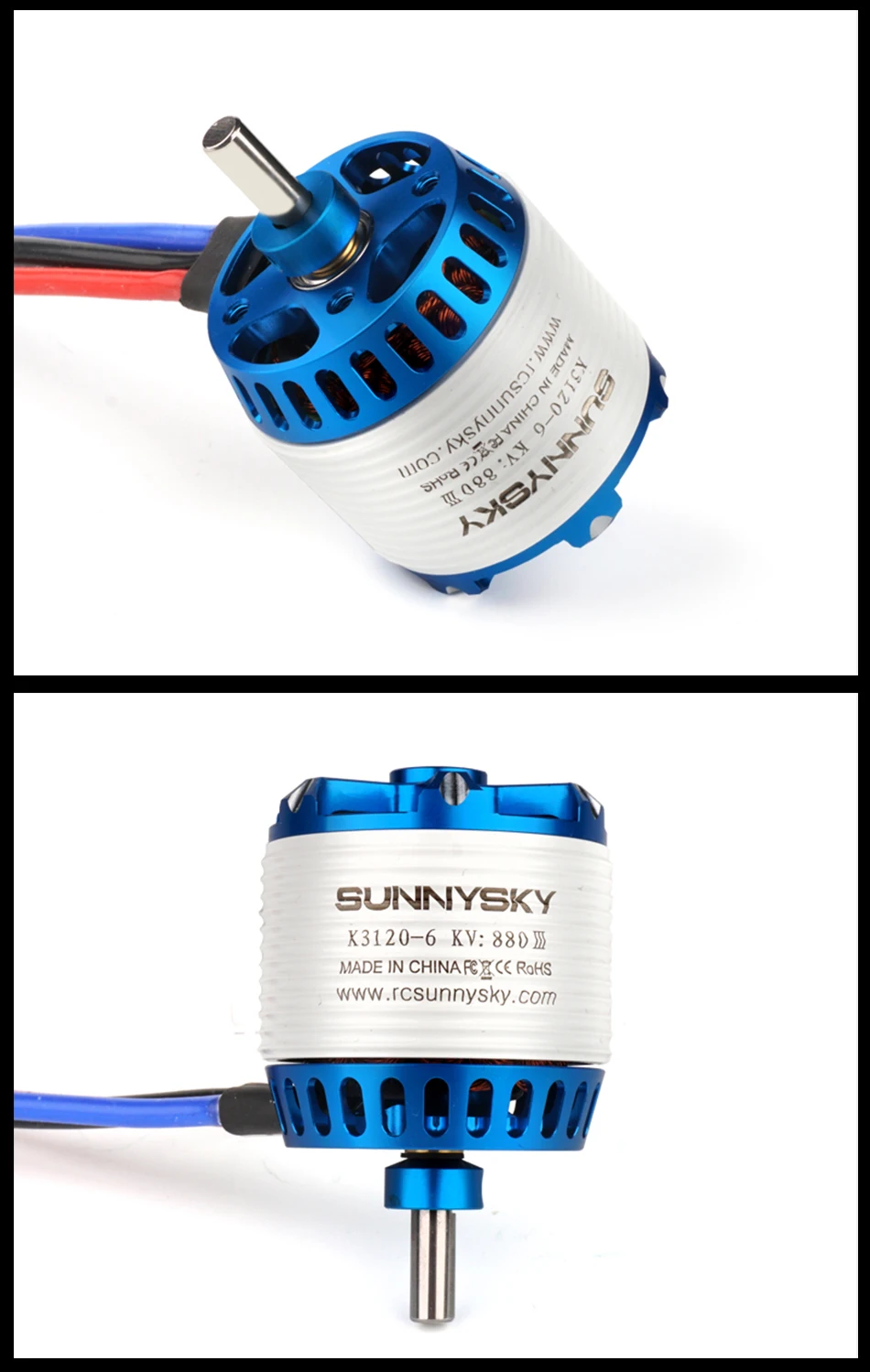

PRECISE BEARING STRICT DYNAMIC BALANCE for every single motor. High precision CNC maching accessories with SunnySky superior assembly process for higher Run-out and con- centricity.
The product is made in China and complies with RoHS standards. available at www.rcsunnysky.com.

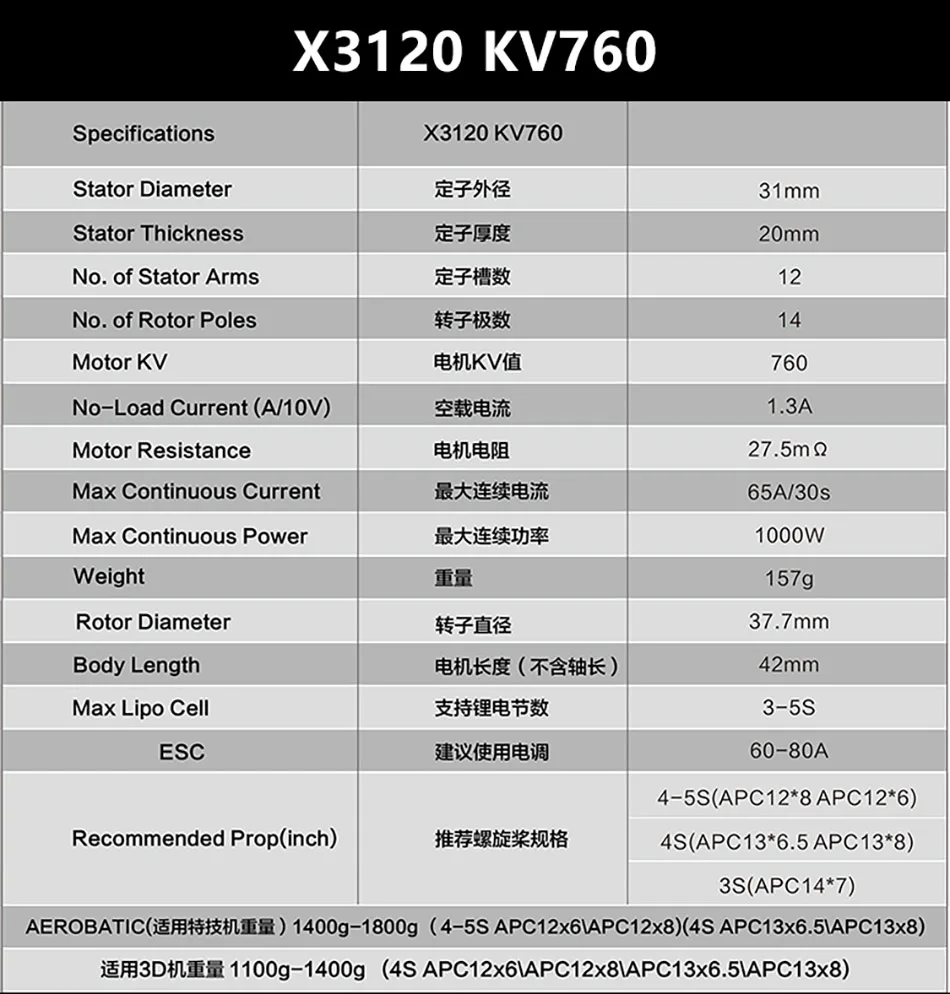

X3120-III Brushless Motor Specifications: Stator diameter: 31mm. Stator thickness: 20mm. Number of rotor poles: 14. Motor KV: 760. No-load current: 1.3A. Motor resistance: 27.5mΩ. Maximum continuous current: 65A/30s. Maximum continuous power: 1000W. Weight: 157g. Rotor diameter: 37.7mm.

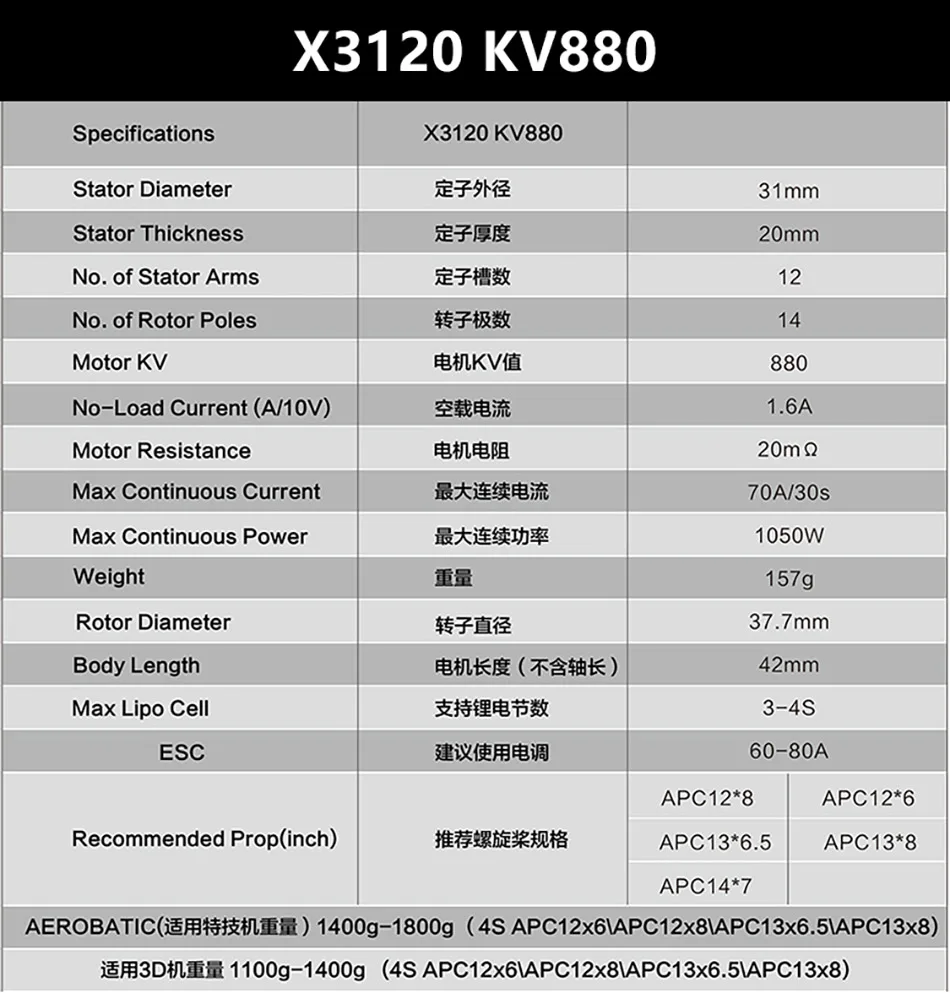

X3120-III Brushless Motor Specifications: Stator diameter: 31mm. Stator thickness: 20mm. Number of stator arms: 12. Number of rotor poles: 14. Motor KV: 880. No-load current: 1.6A. Motor resistance: 20mΩ. Maximum continuous current: 70A/30s. Maximum continuous power: 1050W.

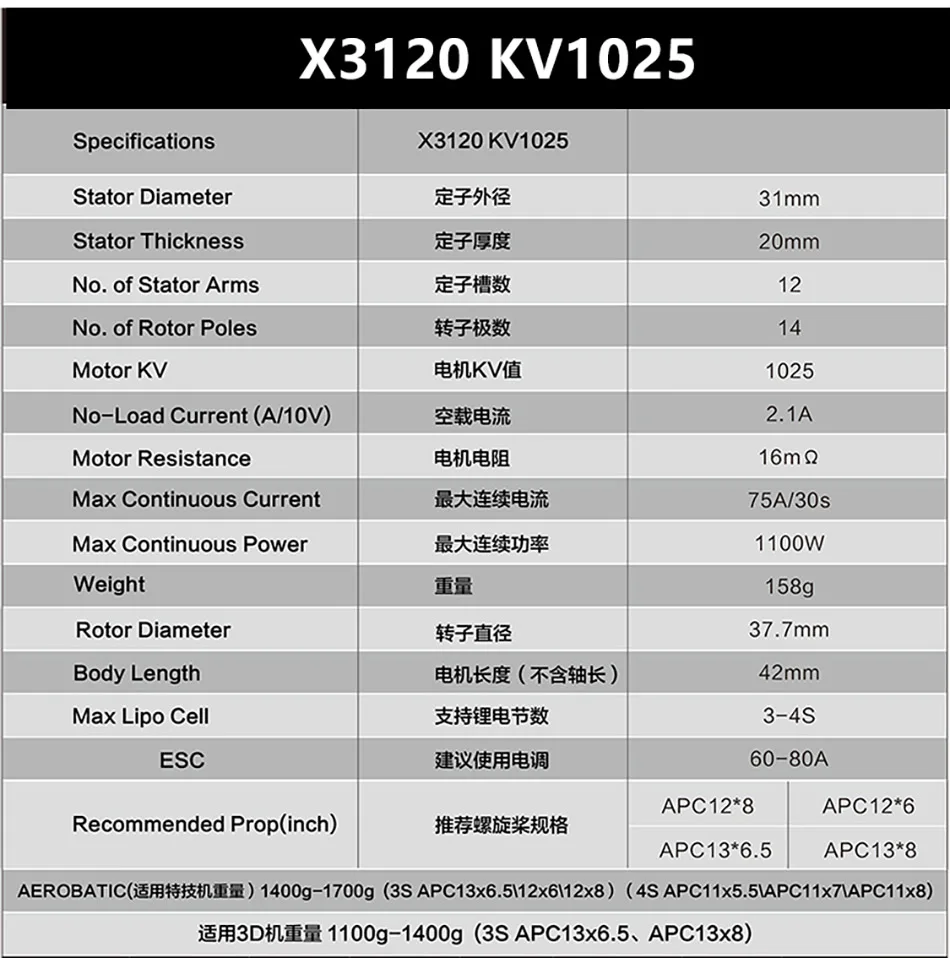

SUNNYSKY X3120-III Brushless Motor Specifications: KV rating: 1025. No-load current: 2.1A. Motor resistance: 16mΩ. Maximum continuous current: 1100W. Weight: 158g. Rotor diameter: 37.7mm. Body length: 42mm. Maximum Lipo cell count: 3-4S. ESC (Electronic Speed Controller) compatibility.
| Color |
1PC X3120 KV585, 1PC X3120 KV1025, 1PC X3120 KV880, 1PC X3120 KV760, 2PCS X3120 KV585, 2PCS X3120 KV1025, 2PCS X3120 KV880, 2PCS X3120 KV760, 4PCS X3120 KV585, 4PCS X3120 KV1025, 4PCS X3120 KV880, 4PCS X3120 KV760 |
|---|
