Surpass Hobby 1104 7000KV / 8700KV / 4600KV 2S–3S Brushless Motor for 80–100mm Micro FPV Racing Drones
Overview
The Surpass Hobby 1104 Brushless Motor is built for high-efficiency power output in 80mm–100mm FPV micro drones. With KV options including 7000KV. 8700KV. and 4600KV. it's perfect for racing or freestyle setups that require versatile performance. The lightweight 5.6g design and 1.5mm shaft provide reliable thrust for drones using 2-inch to 3-inch props.
Key Features
Multiple KV Options: Choose between 4600KV. 7000KV. or 8700KV to match your flight style and battery setup.
2S–3S Compatible: Supports 3.7V–7.4V LiPo batteries. perfect for most micro-class builds.
Durable Build: Precision-balanced design with strong magnetic force for smooth. consistent power.
Lightweight & Compact: Weighs just 5.6g for better agility and flight time.
Versatile Mounting: Compatible with a wide range of props including 65mm. 2". and 3" options.
Specifications
| Parameter | Value |
|---|---|
| Model | X1104 |
| KV Options | 4600KV / 7000KV / 8700KV |
| Shaft Diameter | 1.5mm |
| Height | 14mm |
| Weight | ~5.6g |
| Voltage Range | 2S–3S (3.7V–7.4V) |
| Recommended Props | 2" / 3" / 65mm / 45mm |
| Recommended Frame | 80mm / 90mm / 100mm Drones |
Package Includes
1 × Surpass Hobby 1104 Brushless Motor (KV optional)

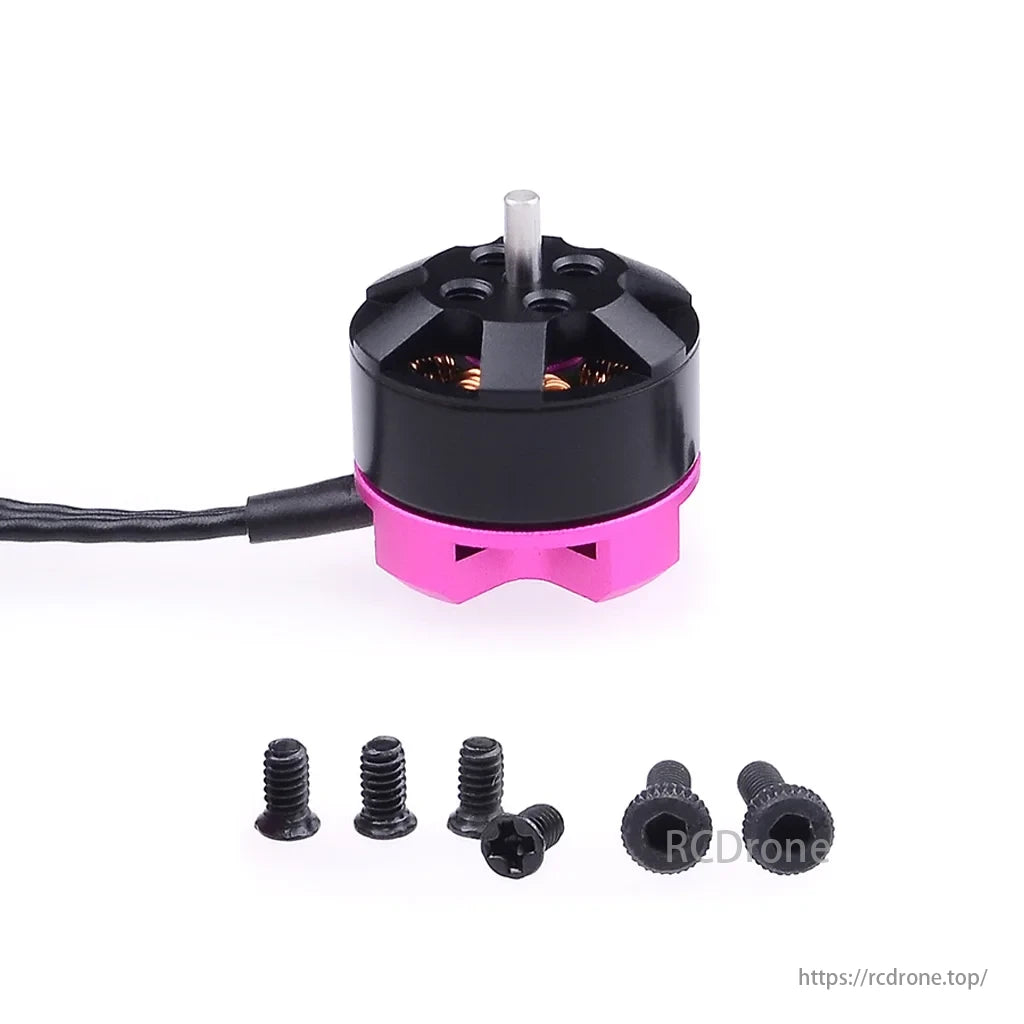

Surpass Hobby 1104 brushless motor. 4600KV/7000KV/8700KV. for RC 80 90 100mm 120mm mini racing drones. Black with pink base. labeled "X1104-7000KV."
X1104 motor: 14mm height. 5.6g weight. 1.5mm shaft. KV options 7000/8700/4600.
| Color |
4Pcs 1104 4600KV, 4Pcs 1104 8700KV, 4Pcs 1104 7000KV, 1Pcs 1104 4600KV, 1Pcs 1104 8700KV, 1Pcs 1104 7000KV |
|---|
