T-MOTOR Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized UAV Drone Electric Fixed Wing Motor OEM OR ODM

$228.04 $162.88

Color: AT4130 230KV

AT4130 230KV
AT4130 300KV
AT4130 450KV
Add to Wishlist
Ask a Question
SKU: 3256803631089651-AT4130--230KV
Availability: In Stock Pre order Out of stock
Categories: Motor T-motor
Description

Tmotor AT4130 SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Cutting

Technical parameters: Value 2

Size: T-Motor AT4130

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: T-Motor AT4130

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes


T-MOTOR Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized UAV Drone Electric Fixed Wing Motor OEM OR ODM

T-MOTOR. 408g Motor Dimensions : 50*79mm Internal Resistance : 16.

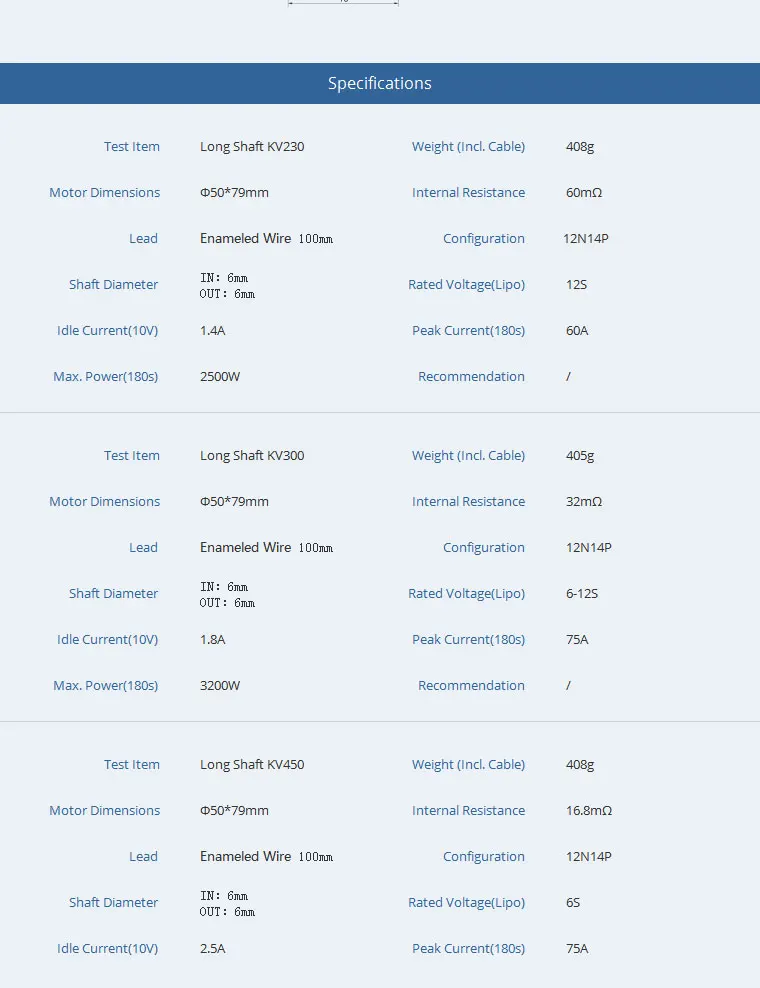

Specifications

Test item : KV230 Long Shaft
Weight (Incl. Cable) : 408g
Motor Dimensions : Φ50*79mm
Internal Resistance : 60mΩ
Lead : Enameled Wire 100mm
Configuration : 12N14P
Shaft Diameter : IN:6mm . OUT:6mm
Rated Voltage(Lipo) : 12S
ldle Current(10V) : 1.4A
Peak Current(180s) : 60A
Max. Power(180s) : 2500W
Recommendation : /

Test item : KV300 Long Shaft
Weight (Incl. Cable) : 405g
Motor Dimensions : Φ50*79mm
Internal Resistance : 32mΩ
Lead : Enameled Wire100mm
Configuration : 12N14P
Shaft Diameter : IN:6mm . OUT:6mm
Rated Voltage(Lipo) : 6-12S
ldle Current(10V) : 1.8A
Peak Current(180s) : 75A
Max. Power(180s) : 3200W
Recommendation : /


Test item : KV450 Long Shaft
Weight (Ind. Cable) : 408g
Motor Dimensions : Φ50*79mm
Internal Resistance : 16.8mΩ
Lead : Enameled Wire 100mm
Configuration: 12N14P
Shaft Diameter : IN:6mm . OUT:6mm
Rated Voltage(Lipo) : 6S
ldle Current(10V) : 2.5A
Peak Current(180s) : 75A
Max. Power(180s) : 1800W
Recommendation : /

T-MOTOR. Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized


T-MOTOR. AT4120 KV56O Kei0 9 THE UPGRADED AT SER

AT4120 KV56O Kei0 9 THE UPGRADED AT SERIES The upgraded AT Series are designed for fixed-wing model; VTOL UAV: See 1 leap in quality after well-grounded development .

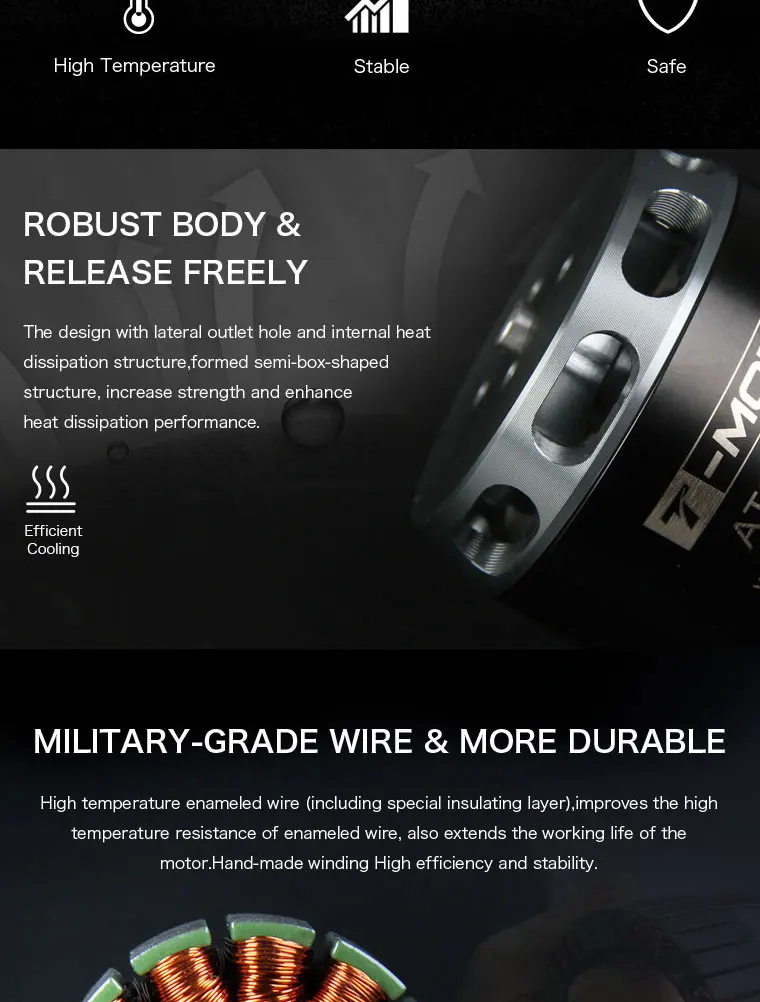

T-MOTOR. design with lateral outlet hole and internal heat dissipation structure formed semi-box

The design features a lateral outlet hole and an internal heat dissipation structure that forms a semi-box-shaped configuration. which enhances the motor's strength and heat dispersal performance. Additionally. it boasts a 5S-efficient cooling system and features military-grade wire.

T-MOTOR. ANTI-STRIPPING DESIGN SAFETY ASSURANCE A Linear

Anti-Stripping Design Ensures Enhanced Safety: Our motor features a linear shaft design. reinforced by a C-Clip lock and shaft collar. This double-layered security mechanism guarantees stability and reliability even at high rotation speeds. eliminating the risk of rotor loosening and ensuring safe flight.

T-MOTOR. PREFERRED RAW MATERIALS SUPERB WORKMANSHIP Evenwn

Features premium raw materials and exceptional craftsmanship. combining the finest components with meticulous attention to detail.

T-MOTOR. VS Ordinary magnet Curved magnet TRIPLE-BEARING SUPPORTED

Featuring triple-bearing support. this motor provides greater stability. efficiency. and strength under heavy loads. making it more durable and capable of flying longer distances.

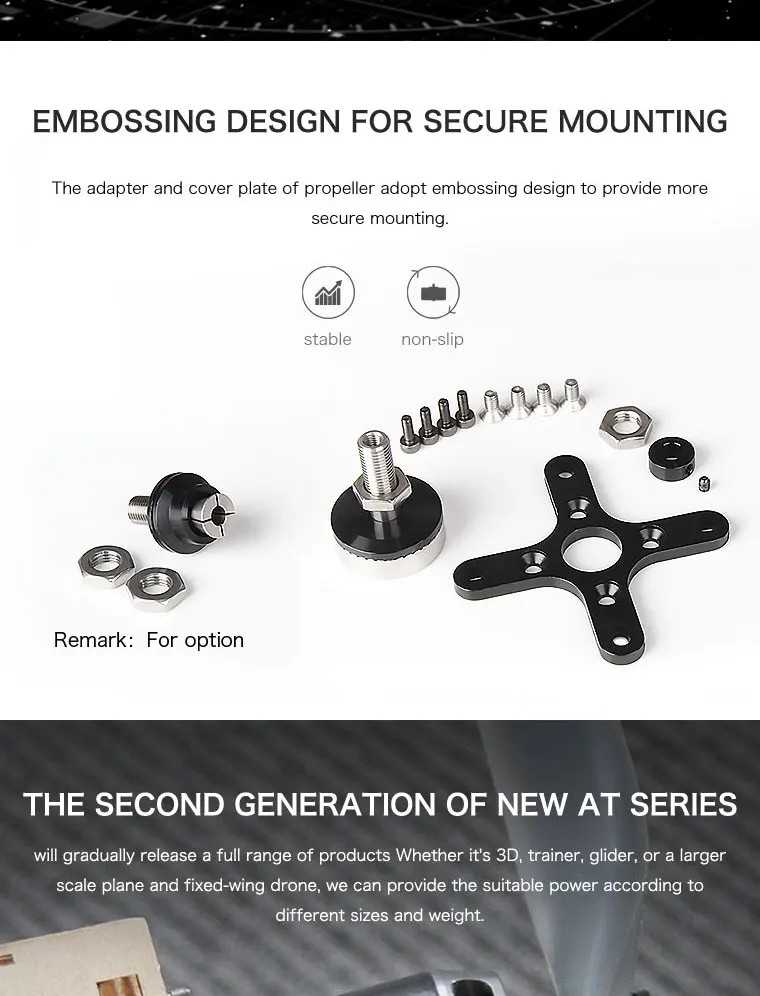

T-MOTOR. propeller adapter and cover plate adopt embossing design to provide more secure mounting

the adapter and cover plate of propeller adopt embossing design to provide more secure mounting . the second generation of new at SERIES will gradually release a full range of products . Whether it's 3D. trainer. glider. or a larger scale plane and fixed-wing drone .

T-MOTOR. 50*79mm Internal Resistance : 32 m Lead : EnameT-MOTOR. 405g Motor Dimensions 050*79mm Internal Resistance 60mn Lead E

Specifications: Test Item - Long Shaft Motor (KV230): * Weight (including cable): 405g * Motor Dimensions: 50mm x 79mm * Internal Resistance: 60mΩ * Lead Enameled Configuration: 12N14P IN (6 turns per inch) * Shaft Diameter: Not specified * Rated Voltage (Lipo): 6-12.5V * Idle Current (1.0V): 1.4A * Peak Current (180s): 60A * Maximum: Not specified

T-MOTOR. KV450 Long Shaft Weight (Ind.T-MOTOR. 408g Motor Dimensions : 50*79mm Internal Resistance : 60T-MOTOR. 408g Motor Dimensions : 50*79mm Internal Resistance : 16.T-MOTOR. 50*79mm Internal Resistance : 32 m Lead : Ename

T-MOTOR Tmotor AT4130

Please do nob bid if you are nob going to make bhe paymenb_ We accepb: We accept Alipay here: All major credib cards are accepted bhrough secure ESCROW payment processor .

T-MOTOR. Feedbacks 5 Sbar Feedback Please leave five sbars Posibive feedbackl Produc

Feedbacks 5 Sbar Feedback Please leave five sbars Posibive feedbackl Producb as agreed Any quesbion; please feel Communicabion free tO conbacb wibh us Shipping bime till you are sabisfie



Additional Information
Color

AT4130 230KV, AT4130 300KV, AT4130 450KV
