Introduction Thank you for purchasing the ToolkitRC Q6AC 1-6S Lipo Battery Charger for FPV Drone. Please read this manual carefully before use. Key Points Tips Important Information Safety: 1. The Q6AC allows an input voltage of AC 100V-240V or DC 7-30V. To ensure that the power supply voltage is consistent. pay attention to the positive and negative polarity of the power supply before use. 2. Do not use this product in hot or humid environments. Keep away from flammable liquids and gases. 3. Never leave charging batteries unattended. 4. When not in use. please turn off/unplug the device. 5. When using the charging function. please set a current that matches the battery performance envelope. Do not set an excessive current for charging to avoid damage to the battery. Check the guidelines of your battery manufacturer for correct charging instructions.

The Q6AC is a four-channel balance charger with IPS display and wheel menu navigation. making it easy and convenient to operate. It supports charging. discharging. and balancing management for various battery types. including LiPo. LiHV. LiFe. Lion. LTO. NiMH. and PB batteries. The charger features AC and DC power supply modes: AC 100-240V with a maximum output of 40W; DC 7-30V with a maximum output of 120W. Charging power reaches up to 15A at 250W. while discharging power is limited to 3A at 12W in normal mode and 15A at 250W in recycle mode. The charger boasts an accuracy of <0.005V and a balancing current of 80mA. Additionally. it features built-in wireless charging (15W) and C/3O fast charging. The lithium battery cut-off voltage can be set (TVC). and the charger automatically allocates input power.

Quick start guide for ToolkitRC Q6AC 1-6S Lipo Battery Charger. Connect the device to an AC or DC power source. The screen displays the boot logo and an audible tone accompanies the boot sequence. After booting. the main interface appears with voltage. current. capacity. and temperature readings. Use CH/Exit to switch between channels (short press) or display voltage and internal resistance (scroll). Short press Scroll Wheel to select a charging task when idle or adjust/end charge in progress. Long press Scroll Wheel for 2 seconds to enter system settings. Press CH/Exit to end modification or return to previous interface.

Toolkit RC Q6AC 1-6S Lipo Battery Charger for FPV Drone The following interface allows you to set charging parameters: Select and short press Scroll Wheel to enter the charging function. If battery selection is enabled in the main settings interface. up to five battery records can be saved. Otherwise. it will default to the first battery record. To select a battery type. move the cursor using Scroll Wheel and choose from existing records or create a new one. Short press Scroll Wheel to enter the battery setting interface. which displays: Battery Type: LiPo Cells: Auto Mode Charge End Voltage: 4.20V Charge Current: 3.0A Start Step:

ToolkitRC Q6AC 1-6S Lipo Battery Charger for FPV Drone. The charger supports Lipo. LiHV. LiFe. Lion. NiMh. and PB chemistry batteries. Please choose the correct battery type before charging. Choosing the wrong battery type may damage the battery. charger. or cause fire and other dangers.

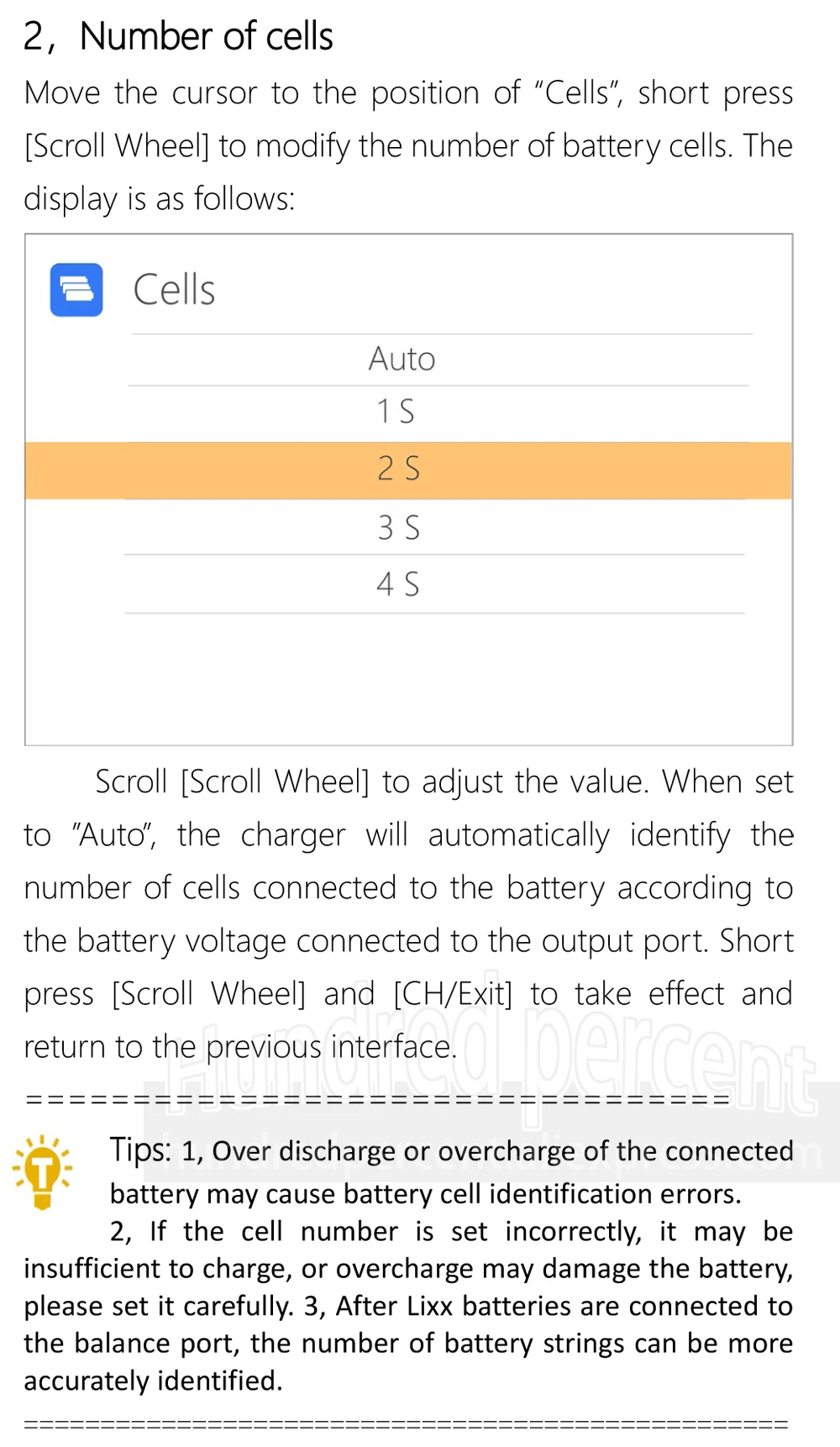

Adjusting the Number of Cells: Move the cursor to 'Cells'. then short press Scroll Wheel to modify the number of battery cells. The display will show 'Auto' or a value from 1 to 6. When set to 'Auto'. the charger will automatically identify the number of cells connected to the battery according to the battery voltage at the output port. Short press Scroll Wheel and CH/Exit to take effect and return to the previous interface.

Other functions

1. Firmware upgrade

After connecting the Q6AC to the computer with the
USB data cable in the box. the computer will recognize a
USB drive named Toolkit. Download the upgrade file
app.upga on the official website. To update copy and
past the new file and overwrite the files in the USB to

upgrade the firmware.

2. Automatically continue charging
When a battery is fully charged. after unplugging the
battery. connect to the next battery. the device will
automatically continue to charge. you can start and stop
this function in the settings menu.

3. Fan stepless speed regulation
When the internal temperature of the device exceeds
43°C or AC power supply. the power is greater than

100W. and the fan will increase the fan speed linearly
according to the internal temperature increase or power
increase. Make it less noisy when operating at low
temperatures or low power.

4. Wireless charging

Q6AC has built-in 15W wireless charging. only need to
place the device that supports wireless charging at the
top of the product wireless charging position. and will
automatically start charging.

5. USB fast charging

Q6AC built-in USB fast charging protocol. up to C port
up to 65W charging power. A port can support up to
30W. Supported protocols are PD. QC. AFC. FCP. SCP . PE.
SFCP. VOC. @ToolkitRC 2023 25

6. Manually calibrate the voltage

In the shutdown state. press and hold the Scroll
Wheel without releasing. connect the power supply. and
the system will enter the manual voltage calibration
function. Use a voltmeter to measure the actual voltage
of each battery. move the cursor to the corresponding

voltage value. modify the voltage value to be consistent
with the voltmeter value. and achieve calibration. After
the calibration is completed. move the cursor to save.
short press once. the buzzer will beep for a long time.
and the save is successful. Just exit or shut down.

7. Fully charged

When the lithium battery is fully charged. it will
prompt "Fast charging has ended". If the battery is not
removed. the constant voltage trickle charge will be
performed automatically to keep the battery full.

Q6AC four channel independent output. automatic power distribution. total output power up to 1000W. AC/DC dual mode input. built-in 400W AC power supply. XT90 DC input. power up to 1000W. Magesafe magnetic suction wireless charging. slider design. compatible with XT60/XT30 optional.

Input voltage: AC 100-240V. maximum 100W 5.0A

DC 7.0-30.0v @ Max 50A

Battery type: Lipo LiHV LiFe Lion LTO @ 1-6S

NiMh @ 1-16S Pb @ 1-10S

Balance current: 800mA @ 4.2V

Charging power: 250W @ MAX 15A * 4

Discharge power: 250W @ MAX 15A recycling mode

12w @ 3A normal mode

USBA: 30w or upgrade firmware

USBC: Maximum 65W@20.0V

PD QC PPS AFC FCP SCP PE SFCP

Product size: 220mm * 113mm * 82mm

Product weight: 1120g

Packaging size: 260 * 220 * 120 mm

Packaging weight: 1600g
